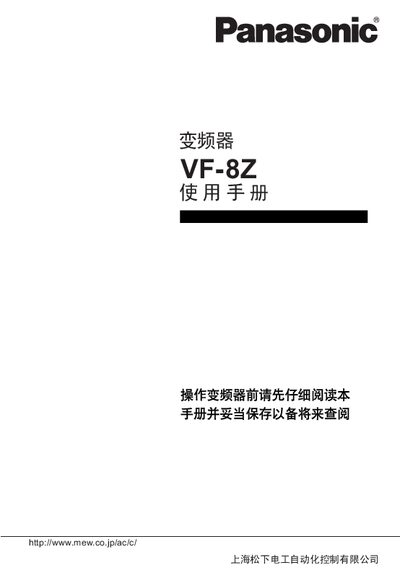

This manual introduces the installation, use, maintenance and inspection methods of VF-8Z inverter, and provides safety precautions.
This manual explains the safety precautions and responsibilities for installing and using the Panasonic VF-8Z inverter. It emphasizes that only qualified personnel should perform design, installation, start‑up, and maintenance to avoid injury or equipment damage.
The document covers installation steps, wiring requirements, operation procedures, parameter settings, troubleshooting, and environmental specifications. It also lists technical data such as input voltage, output power range, overload capacity, and operating temperature limits. This manual is written in Chinese.
| Input voltage | 380 V ~ 460 V AC, 3‑phase, 50/60 Hz |
|---|---|
| Output power range | 5.5 kW ~ 37 kW |
| Overload capacity | 150 % of rated output current for 1 minute |
| Input voltage tolerance | ±10 % |
| Input frequency tolerance | ±5 % |
| Operating temperature range | -10 °C ~ +40 °C |
| Carrier frequency | Up to 15 kHz |
The inverter can be used in ambient temperatures from –10 °C to +40 °C.
It can handle 150 % of its rated output current for up to one minute.
