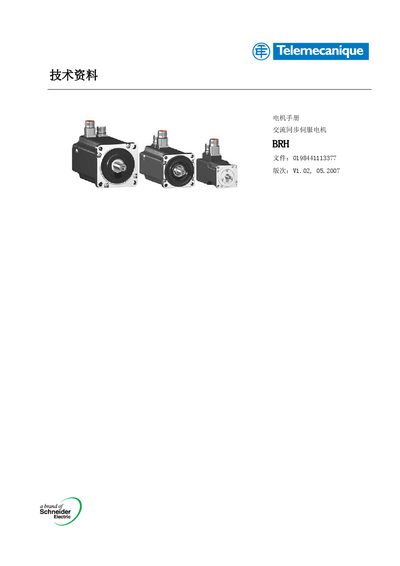

This manual introduces the series, models, nameplate, model code, regulations and standards of AC synchronous servo motors.
The manual covers safety requirements, including the need for trained personnel and keeping hazardous areas clear, before any operation or maintenance of the BRH servo motor. It also details the installation procedure, wiring connections, and mechanical mounting guidelines.
Technical data such as motor designation, type, product numbers, thermal class, protection degree, insulation system and compliance with EC directives are listed, followed by fault‑diagnosis advice and appendices like the EC Declaration of Conformity. This manual is written in Japanese.
| Designation | 3 Phase Servo Motor |
|---|---|
| Type | BRHxx |
| Product numbers | 01580xxxxxxxx, 01581xxxxxxxx, 01582xxxxxxxx, 01583xxxxxxxx |
| Thermal class | 155 |
| Degree of protection | According to EN 60034-5:2001 |
| Insulation system | EN 60664-1:2003 |
| UL certification | UL 1004 |
The motor is designated as a 3 Phase Servo Motor.
