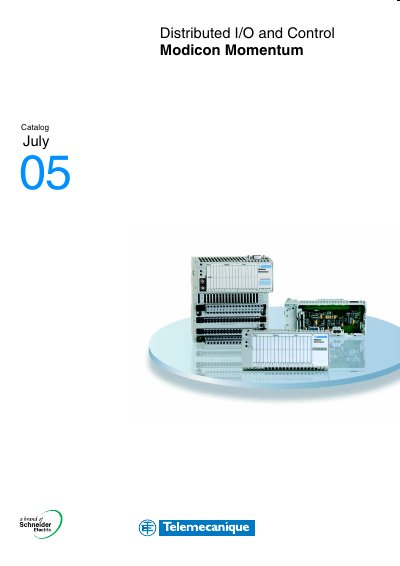

This document is a product catalog of Schneider Electric, which covers Modicon Momentum distributed I/O and control, Automation platform Modicon Quantum and Unity - Concept Proworx software, Automation platform Modicon Premium and Unity - PL7 software, Automation platform Modicon TSX Micro and PL7 software.
The Modicon Momentum platform provides a modular distributed I/O system built from four basic components – I/O bases, communication adapters, processor adapters and option adapters. These elements can be combined to suit any field‑bus network and support PLCs, PCs or dedicated Momentum processors.
The catalog lists the full range of discrete, analog, specialty and multi‑function I/O bases, a variety of communication adapters (Ethernet, Modbus Plus, Profibus DP, DeviceNet, etc.), processor adapters (M1/M1E) and optional adapters for extra networking, clock and battery backup. Technical data, dimensions, mounting options and reference numbers are provided for each product.
| Operating voltage | 24 VDC |
|---|---|
| Input voltage | 24 VDC |
| Current consumption (max) | 250 mA |
| Response time (OFF‑ON) | 2.2 ms |
| Number of points per module | 1 × 16 In, 2 × 8 Out |
The system consists of I/O bases, communication adapters, processor adapters and option adapters.
Discrete I/O bases, analog I/O bases, multi‑function analog and bi‑directional discrete bases, and specialty module I/O bases are available.
Yes, selected modules can be supplied with a conformal coating for corrosive environments.
