This document is the maintenance manual of GR-Q23NBR refrigerator, which mainly introduces the specifications, circuit diagram and disassembly diagram of the refrigerator.

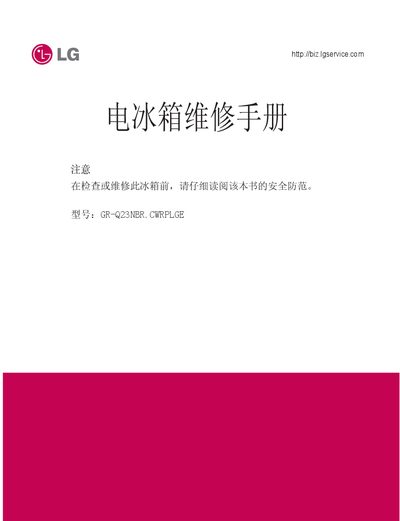

This manual provides essential safety precautions that must be read before inspecting or repairing the LG GR-Q23NBR.CWRPLGE refrigerator. It emphasizes careful reading of the safety section to prevent accidents during service.
The document lists the refrigerator's component counts, such as one freezer drawer, three refrigerator shelves, three fruit‑vegetable boxes, and other accessories. It also includes detailed circuit diagrams for the model, helping technicians diagnose electrical issues. This manual is written in Chinese.
| Freezer drawer count | 1 |
|---|---|
| Refrigerator shelf count | 3 |
| Product certificate count | 1 |
The refrigerator has one freezer drawer.
Read the safety precautions in the manual before inspecting or repairing the unit.
