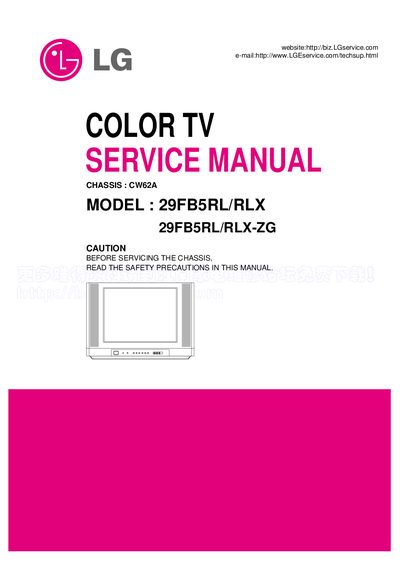

This manual provides detailed instructions on how to repair 29FB5RL/RLX-ZG TV, including safety precautions, control descriptions, specifications, adjustment instructions, troubleshooting, printed circuit board, block diagram, exploded view, exploded view parts list, replacement parts list, SVC sheet, etc.
This service manual provides detailed safety precautions, control descriptions, and adjustment procedures for the LG 29FB5RL/RLX 29‑inch color television. It includes wiring diagrams, exploded view parts lists, and a replacement parts list to aid technicians during repair and maintenance.
The document also contains the TV's technical specifications, such as screen size, input voltage range, receiving system standards, and safety/emc compliance. Service sheets and part numbers are provided for quick reference.
| Screen Size | 29 inch |
|---|---|
| Input Voltage | AC 110‑240 V, 50/60 Hz |
| Power Voltage | AC 110‑240 V, 50/60 Hz |
| Receiving System | PAL, SECAM, NTSC |
| Safety Standard | IEC60065 |
| EMC Standard | EN55020, EN55013 |
An isolation transformer should always be used during servicing to protect the technician from electrical shock.
Use an accurate high‑impedance HV meter to measure the high voltage while the picture controls are set to minimum.
Adjustment must be performed at 25 ± 5 °C temperature and 65 ± 10 % relative humidity.
