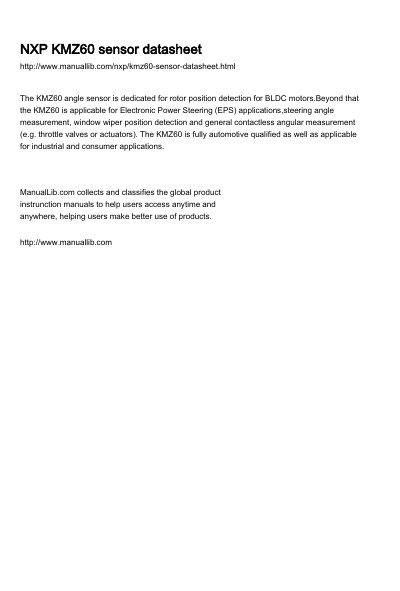

The KMZ60 angle sensor is dedicated for rotor position detection for BLDC motors.Beyond that the KMZ60 is applicable for Electronic Power Steering (EPS) applications,steering angle measurement, window wiper position detection and general contactless angular measurement (e.g. throttle valves or actuators). The KMZ60 is fully automotive qualified as well as applicable for industrial and consumer applications.
The NXP KMZ60 is an angle sensor designed specifically for rotor position detection in Brushless DC (BLDC) motors. It utilizes MagnetoResistive (MR) technology with an integrated amplifier to deliver single-ended cosine and sine output signals related to the angle of a rotating magnetic field. The device is fully automotive qualified and also suitable for industrial and consumer applications such as Electronic Power Steering (EPS), steering angle measurement, window wiper position detection, and general contactless angular measurement.
| Supply voltage (VCC) | 2.7 - 5.5 V |
|---|---|
| Operating temperature range | -40 to +150 °C |
| External magnetic field strength (Hext) | 25 kA/m |
| Angular inaccuracy | -0.1 to +0.1 deg |
| Supply current (normal) | 2.0 to 6.0 mA |
| Supply current (Power-down) | < 16 µA |
| Output resistance (VOUT) | 50 - 150 Ω |
| Package type | SO8 plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 |
The KMZ60 is dedicated for rotor position detection for BLDC motors and applicable for Electronic Power Steering (EPS) applications, steering angle measurement, window wiper position detection and general contactless angular measurement.
Yes, the device is RoHS compliant and free of halogen and antimony (Dark Green compliant).
The device draws the output voltages on VOUT1 and VOUT2 to the ground level in case of failure.
