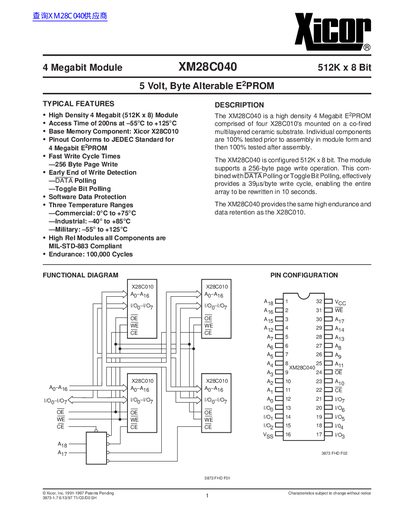

Xicor XM28C040 4 Megabit E2PROM Module Datasheet
The XM28C040 is a high‑density 4 Megabit (512 K × 8) E2PROM module operating at 5 V. It offers an access time of 200 ns, supports three temperature ranges (Commercial 0 °C‑+75 °C, Industrial ‑40 °C‑+85 °C, Military ‑55 °C‑+125 °C), and provides 100 000 write‑cycle endurance. The module uses a 256‑byte page‑write architecture that can rewrite the entire array in about 10 seconds.
Key features include fast write cycles (≈5 ms per byte), DATA Polling and Toggle‑Bit status bits for write‑completion detection, and both hardware (noise protection, VCC sense, write‑inhibit) and software data‑protection mechanisms that can be enabled via a defined command sequence.
Xicor XM28C040 specifications
| Memory Capacity | 512K × 8 bits |
|---|---|
| Access Time | 200 ns |
| Supply Voltage | 5 V |
| Temperature Range – Commercial | 0 °C to +75 °C |
| Temperature Range – Industrial | -40 °C to +85 °C |
| Temperature Range – Military | -55 °C to +125 °C |
| Endurance | 100 000 write cycles |
| Page Write Size | 256 bytes |
| Typical Byte Write Time | ≈5 ms |
| Package Type | 32‑pin dual‑in‑line module |
All Xicor XM28C040 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the access time of the XM28C040?
The XM28C040 has an access time of 200 ns.
Which temperature ranges does the XM28C040 support?
It supports Commercial (0 °C‑+75 °C), Industrial (‑40 °C‑+85 °C) and Military (‑55 °C‑+125 °C) ranges.
What is the access time of the XM28C040?
The XM28C040 has an access time of 200 ns.
Which temperature ranges are supported by the XM28C040?
It is offered in three ranges: Commercial (0 °C to +75 °C), Industrial (‑40 °C to +85 °C), and Military (‑55 °C to +125 °C).
