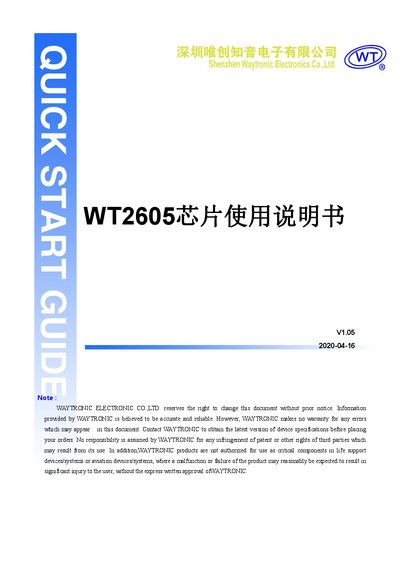

Waytronic WT2605 Audio Bluetooth Chip User Manual
This manual provides a complete overview of the WT2605 audio Bluetooth chip, including its core functions such as MP3 playback, Bluetooth communication, and UART control. It describes the chip’s architecture, pin assignments, and mechanical dimensions, helping developers integrate the device into their products.
The document also lists electrical and RF parameters, operating temperature range, power consumption, and special design recommendations for antenna placement and grounding to ensure reliable performance. This manual is written in Chinese.
WAYTRONIC WT2605 specifications
| CPU Frequency | 120MHz |
|---|---|
| Crystal Oscillator | 26MHz |
| DAC SNR | 96dB |
| ADC SNR | 90dB |
| Bluetooth Version | 5.0 |
| Operating Temperature | -40 to +85 C |
All WAYTRONIC WT2605 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum transmission power of the WT2605?
The maximum transmission power is -2dBm.
Does the chip support Bluetooth EDR?
Yes, it complies with the Bluetooth 5.0 specification including BR/EDR.
