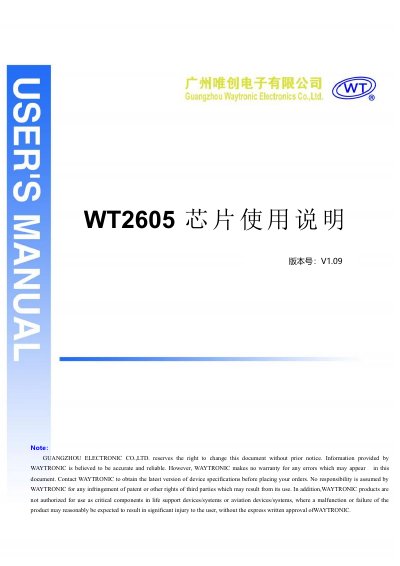

This datasheet details the specifications, pin definitions, and electrical parameters for the WAYTRONIC WT2605 Bluetooth audio chip.
The WAYTRONIC WT2605 is a high-performance MP3 voice codec Bluetooth chip designed specifically for audio applications. It features a powerful 32-bit DSP core running at up to 120MHz and includes built-in analog interfaces for high-quality audio input and output.
The document provides comprehensive technical data, including pin definitions for the SSOP24 package, electrical parameters such as SNR (96dB for DAC) and operating conditions (-40°C to +85°C), and specific Bluetooth 5.0 characteristics like transmission power and sensitivity. This manual is written in Chinese.
| CPU Frequency | 120MHz |
|---|---|
| Crystal Oscillator | 26MHz |
| DAC SNR | 96dB |
| ADC SNR | 90dB |
| Bluetooth Version | 5.0 |
| Operating Temperature | -40 to +85 C |
The maximum transmission power is -2dBm.
Yes, it complies with the Bluetooth 5.0 specification including BR/EDR.
