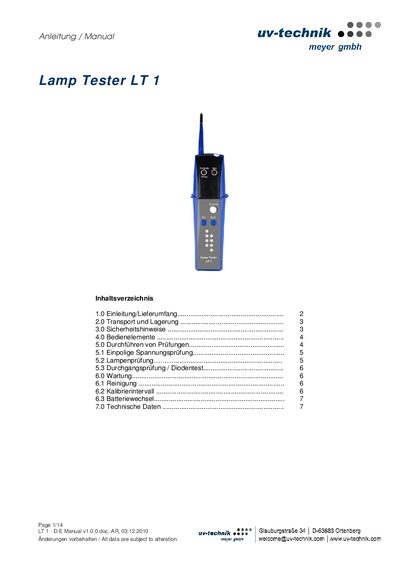

Meyer LT 1 Lamp Tester User Manual
The Meyer LT 1 is a handheld testing device designed for fault detection in gas-filled lamps, including low and high-pressure discharge lamps. It utilizes high-frequency voltage (approx. 3 kV) to ionize and test the lamp. The device also functions as a continuity tester, a single-pole voltage tester, and includes an integrated flashlight. This manual is written in German.
Read onlineUV-technik LT 1 specifications
| Output values (new battery) | 3 kV/160 Hz |
|---|---|
| Field strength | 100 µV/m |
| Frequency range | 150-170 kHz |
| Voltage test frequency | 40-60 Hz |
| Continuity test voltage rating | 250 V AC/DC |
| Operating temperature | -10°C to +50°C |
| Power supply | 9 V battery IEC 6LR6E1 |
| Dimensions | 225 x 60 x 40 mm |
| Net weight | 450 g |
All UV-technik LT 1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What types of lamps can the LT 1 test?
The LT 1 can test mercury low-pressure lamps, high power amalgam lamps, mercury medium-pressure lamps, high-pressure sodium vapor lamps, fluorescent tubes, neon tubes, metal halide lamps, and low-pressure sodium vapor lamps.
What types of lamps can this tester check?
The device is suitable for testing gas-filled high and low pressure lamps, including mercury low pressure lamps, high power amalgam lamps, mercury medium pressure lamps, high pressure sodium vapor lamps, fluorescent tubes, neon tubes, metal halide lamps, and low pressure sodium vapor lamps.
What is the voltage range for single-pole testing?
The device can test alternating voltages between 60 and 250 V.
What is included in the delivery scope?
The package includes one Lamp Tester LT 1, one 9V battery (IEC 6LR61), and one operating manual.
