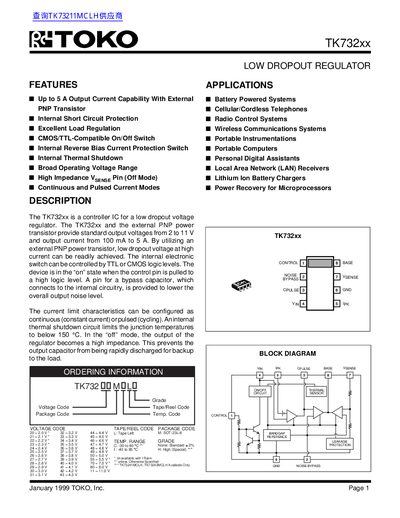

TOKO TK732xx Low Dropout Regulator Datasheet
The TK732xx is a controller IC for a low‑dropout voltage regulator that, together with an external PNP power transistor, delivers standard output voltages from 2 V to 11 V and output currents up to 5 A. It includes internal protections such as short‑circuit, reverse‑bias, and thermal shutdown, and offers both continuous and pulsed current limit modes.
The document lists absolute maximum ratings, detailed electrical characteristics, typical performance curves, application examples (battery‑powered systems, portable computers, LAN receivers, etc.), and package information for the SOT‑23L‑8 footprint. Ordering codes and voltage codes are also provided for selecting the appropriate variant.
TOKO TK732XX specifications
| Maximum Output Current | 5 A |
|---|---|
| Output Voltage Range | 2 V – 11 V |
| Operating Temperature Range | -30 °C to +80 °C |
| Supply Voltage Range | 1.8 V – 14.0 V |
