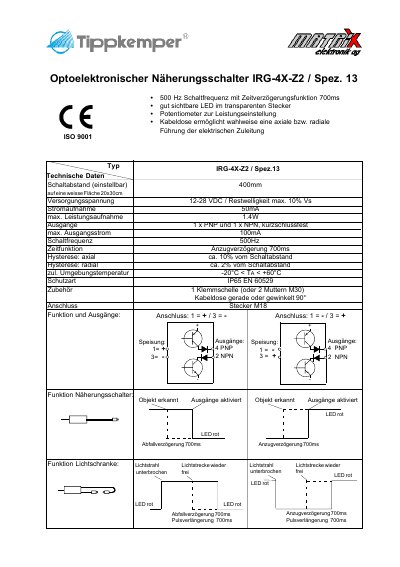

Tippkemper-Matrix IRG-4X-Z2/Spez.13 technology data
This document provides technical data for the Tippkemper IRG-4X-Z2 / Spez.13 optoelectronic proximity switch. Key features include a switch frequency of 500 Hz with a 700 ms delay function, a visible LED indicator, and a potentiometer for power adjustment. The device supports both axial and radial cable guidance via an integrated cable box. This manual is written in German.
Read onlineTippkemper IRG-4X-Z2 specifications
| Switch Frequency | 500 Hz |
|---|---|
| Delay Function | 700ms |
| Switching Distance | 400mm |
| Supply Voltage | 12-28 VDC |
| Max. Current Consumption | 50mA |
| Max. Output Current | 100mA |
| Outputs | 1 x PNP and 1 x NPN |
| Operating Temperature | -20°C to +60°C |
| Protection Class | IP65 |
All Tippkemper IRG-4X-Z2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the internal reaction speed of the sensor?
The internal reaction speed of the sensor is 1ms.
How can the sender intensity be adjusted?
The sender intensity can be optimally adjusted using the built-in potentiometer.
What supply voltage range does the IRG-4X-Z2 S13 require?
It operates from 12 VDC to 28 VDC with a maximum ripple of 10 % of the supply voltage.
From: Tippkemper IRG-4X-Z2 S13 Proximity Switch Technology Data
What is the maximum switching frequency of the sensor?
The sensor can switch at up to 500 Hz.
From: Tippkemper IRG-4X-Z2 S13 Proximity Switch Technology Data
