Featured Tippkemper manuals

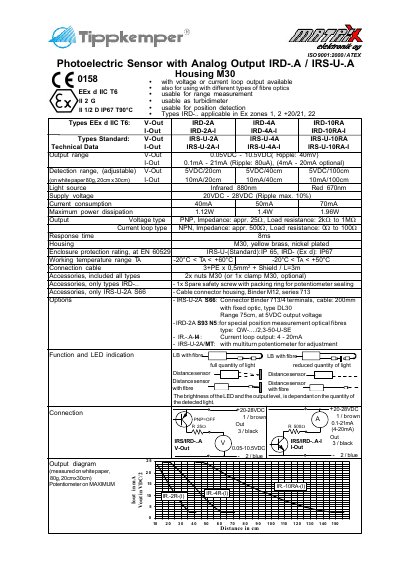

Tippkemper-typ-IRS/D Photoelectric Sensor with Analog Output IRD-.A IRS-U-.A Housing M30 technology data (In English)
The IRD‑2A and IRS‑U‑2A series are photoelectric sensors with analog voltage (V‑Out) or current loop (I‑Out) outputs. They feature M30 yellow‑brass housings with nickel plating, IP67 (Ex d) or IP65 (Standard) protection ratings, and operate from 20 VDC to 28 VDC. Output ranges are 0.05 VDC‑10.5 VDC for voltage mode and 0.1 mA‑21 mA for current mode, with detection ranges adjustable up to 100 cm.
Mounting must follow Ex‑zone prescriptions: cable terminations are performed outside hazardous zones, certified EEx housings are required, and protective earth must be solidly connected to the housing. The sensors comply with ATEX, EN, and IEC standards and are intended for use in hazardous environments such as chemical plants and oil‑gas facilities.
Covers: Technical Data · Mounting prescriptions · Function · Nominal range · Fibre optics · Maintenance

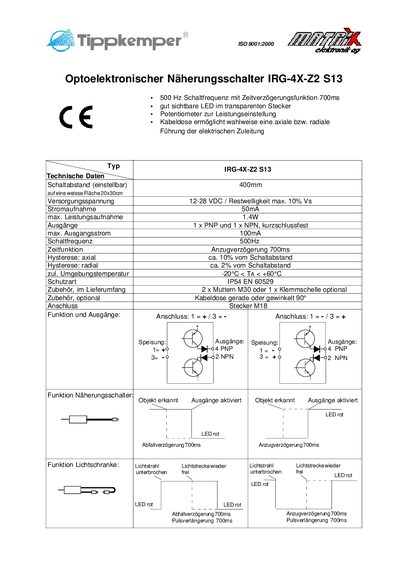

Tippkemper IRG-4X-Z2 S13 Proximity Switch Technology Data
The IRG-4X-Z2 S13 is an optoelectronic proximity switch designed to detect small or fast‑moving parts. It features a built‑in potentiometer for intensity adjustment, a visible red LED indicator, and selectable axial or radial cable connections.
The sheet provides electrical data (12‑28 VDC supply, 500 Hz switching, 700 ms delay), mechanical limits (adjustable switching distance up to 400 mm, operating temperature –20 °C to +60 °C, IP54 protection) and installation guidelines, including wiring diagrams, safety notes and maintenance instructions. This manual is written in German.
Covers: Technical Data · Installation Guidelines · Function Description · Wiring and Pinout · Safety Information · Maintenance
Latest Tippkemper manuals
Tippkemper-Matrix IRG-4X-Z2/Spez.13 technology data
IRG-4X-Z2 / Spez.13 is an optoelectronic proximity switch produced by IRG Germany. It has a switching frequency of 500Hz, can choose a 700ms delay time, and is equipped with an LED indicator and power adjustment knob. Its mounting distance is 400mm, the power supply voltage is 12-28 VDC, the maximum current is 50mA, the maximum power consumption is 1.4W, the output is 1 x PNP and 1 x NPN, the maximum output current is 100mA, the switching frequency is 500Hz, the time function is 700ms of delay time, and the maximum ambient temperature is -20°C < TA < +60°C. The protection level is IP65 EN 60529.
Tippkemper-typ-IRS/D Photoelectric Sensor with Analog Output IRD-.A IRS-U-.A Housing M30 technology data (In English)
Datasheet 2 pages · 58 KB · ENThe Matrix Elektronik IRD-2A and IRS-U-2A photoelectric sensors provide analog voltage or current loop outputs with M30 housing for hazardous area applications.
Tippkemper IRG-4X-Z2 S13 Proximity Switch Technology Data
Datasheet 2 pages · 43 KB · DETechnical data sheet for the Tippkemper IRG-4X-Z2 S13 optoelectronic proximity switch, covering specifications, wiring and safety information.
