Start here

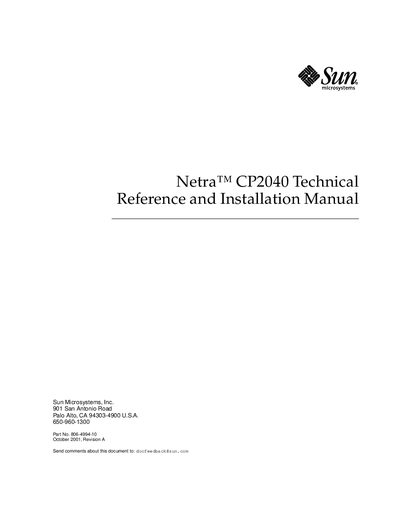

Sun Microsystems CP2040 Technical Reference and Installation Manual
This manual covers the Netra CP2040 CompactPCI host board, including system configuration, front‑panel I/O connectors, and software requirements. It details hardware specifications such as CPU, memory, PCI mezzanine module interface, power requirements, and environmental limits.
Installation procedures, firmware update instructions, and troubleshooting guidance are provided, along with connector pinouts, mechanical drawings, and information on SunVTS software. The document also includes safety, compliance, and warranty information.
Sun Microsystems CP2040 specifications
| SMC Firmware Release (CP2040) | 3.4.2 |
|---|---|
| FPGA Version (CP2040) | 1.0 |
| PLD Version (CP2040) | 1.2 |
| Firmware CORE Release (CP2040) | 0.0.21 |
| SMC Firmware Release (CP2060/CP2080) | 3.10.5 |
| FPGA Version (CP2060/CP2080) | 1.2 |
| PLD Version (CP2060/CP2080) | 4.2 |
| Firmware CORE Release (CP2060/CP2080) | 1.0.10 |
Source: Sun Microsystems Netra CP2040/CP2060/CP2080 Installation Guide
All Sun Microsystems CP2040 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Which Solaris version is required for the CP2000 Supplemental 3.1 CD?
You must install the Solaris 8 1/01 release or a compatible version before installing the CD.
From: Sun Microsystems Netra CP2040/CP2060/CP2080 Installation Guide
Can a USB keyboard be used during installation?
No, the guide cautions not to use a USB keyboard when installing the Solaris 8 1/01 environment.
From: Sun Microsystems Netra CP2040/CP2060/CP2080 Installation Guide
What is the part number of this manual?
The part number is 806-4994-10.
From: Sun Microsystems CP2040 Technical Reference and Installation Manual
When was this manual published?
It was published in October 2001, Revision A.
From: Sun Microsystems CP2040 Technical Reference and Installation Manual
