Start here

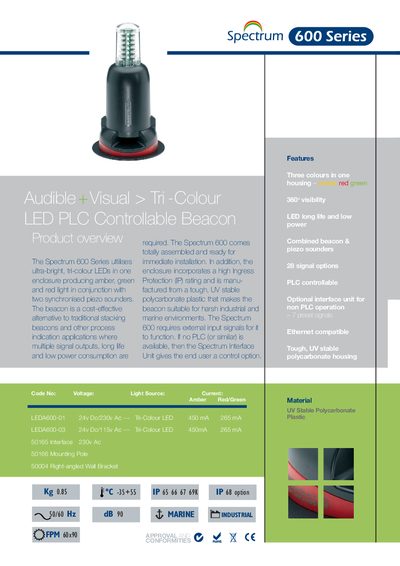

Spectrum 600 Series Beacon Product Leaflet
The Spectrum 600 Series beacon is supplied fully assembled for immediate installation. It features ultra‑bright tri‑colour LEDs (amber, green, red) housed in a UV‑stable polycarbonate enclosure with an IP65‑IP67 rating (IP66 when sounder covers are fitted). Optional electronic piezo sounders provide audible alerts, and the unit operates from 24 V DC or 115/230 V AC.
Mounting options include a surface‑mount plate with an 8‑point DIN fix, a foot‑and‑pole mount (part 60166) and a right‑angled wall bracket (part 60004). The beacon comes with flying leads, 4‑core power cables and 6‑core signal cables, and can be configured for continuous, slow‑flash or rapid‑flash visual signals combined with audible alerts.
Spectrum 600 Series specifications
| Enclosure Material | UV Stable Polycarbonate Plastic |
|---|---|
| Weight | 0.85 kg |
| Ingress Protection (standard) | IP65 & IP67 |
| Ingress Protection (with sounder covers) | IP66 |
| Operating Temperature | -35°C to +55°C |
| LED Amber Candela | 3.9 Effective Candela |
| LED Green Candela | 6.2 Effective Candela |
| LED Red Candela | 4.4 Effective Candela |
| LED Type | Ultra‑bright Tri‑colour LEDs |
| Sounder Current | 20 mA (per piezo) |
| Sounder Frequency Range | 3.1 Hz – 500 Hz |
| Mounting Hole Diameter | 6.5 mm (3 holes) |
| Surface Mount Plate | 8‑point DIN fix |
| Foot and Pole Mount | Part 60166 |
| Right Angled Wall Bracket | Part 60004 |
All Spectrum 600 Series documents by type
Questions answered in these manuals
What is the IP rating of the Spectrum 600 beacon?
It meets IP65 and IP67 as standard, and IP66 when the optional sounder covers are fitted.
What visual signal options are available?
The beacon uses ultra‑bright tri‑colour LEDs with amber (3.9 cd), green (6.2 cd) and red (4.4 cd) output, available in continuous, slow‑flash or rapid‑flash modes.
What signal options does the Spectrum 600 Series beacon support?
It provides 28 signal options, including continuous on, slow flash at 60 FPM, rapid flash 1 and 2 at 90 FPM, and can combine visual and audible signals.
From: Spectrum 600 Series Signalling Beacon Product Data Sheet
What power supplies can be used with the beacon?
It can run from 24 V DC or 230 V AC (115 V AC optional) in a single unit, and a 12 V DC auxiliary supply can be added for battery backup.
From: Spectrum 600 Series Signalling Beacon Product Data Sheet
