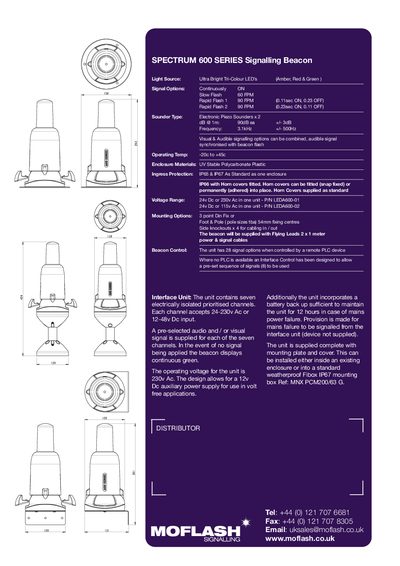

This document describes the features and characteristics of Moflash's SPECTRUM 600 series signaling beacon, including ultra-bright tri-color LED light source, multiple signal options, electronic piezo sounders, wide operating temperature range, and IP65 & IP67 ingress protection.
The Spectrum 600 Series beacon combines ultra‑bright tri‑colour LEDs (amber, red, green) with two electronic piezo sounders. It offers 28 visual and audible signalling options, including continuous on, slow flash (60 FPM) and two rapid flash modes (90 FPM), which can be synchronized for combined alerts.
The unit is housed in a UV‑stable polycarbonate enclosure with IP66 protection as standard and IP67 when horn covers are fitted. It operates from 24 V DC or 230 V AC (115 V AC optional) and includes a battery‑backed 12‑48 V DC input for up to 12 hours of operation during mains failure. Mounting options include a 3‑point DIN fix or foot‑and‑pole mount with 54 mm fixing centres, plus various bracket accessories.
| Light Source | Ultra Bright Tri‑Colour LEDs (Amber, Red, Green) |
|---|---|
| Signal Options | 28 options (continuous, slow flash 60 FPM, rapid flash 1 & 2 at 90 FPM) |
| Sounder Type | Electronic Piezo Sounders × 2 |
| Sound Level | 90 dB @ 1 m ± 3 dB |
| Frequency | 3.1 kHz ± 500 Hz |
| Operating Temperature | -20 °C to +45 °C |
| Enclosure Material | UV‑stable Polycarbonate Plastic |
| Voltage Range | 24 V DC or 230 V AC (115 V AC optional) |
| Mounting Options | 3‑point DIN fix or foot & pole (54 mm fixing centres) |
| LED Power Consumption | Typical 250 mA |
It provides 28 signal options, including continuous on, slow flash at 60 FPM, rapid flash 1 and 2 at 90 FPM, and can combine visual and audible signals.
It can run from 24 V DC or 230 V AC (115 V AC optional) in a single unit, and a 12 V DC auxiliary supply can be added for battery backup.
Mounting options include a 3‑point DIN fix, a foot‑and‑pole mount with 54 mm fixing centres, and various bracket accessories.
