Key facts
- Brand
- SOYO
- Model
- SY-A8N4
- Category
- Other device
- Documents
- 3
- Languages
- ZH
- Last added
- 2012-04-12
Start here

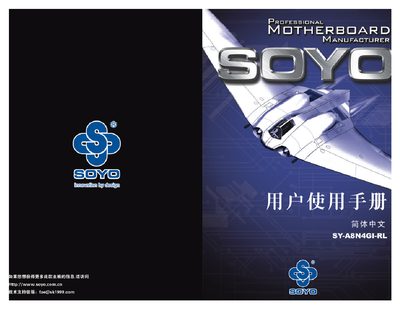

SOYO SY-A8N4GI-RL User Manual
This manual covers the SY-A8N4GI-RL motherboard from SOYO, detailing its features, supported components, and setup procedures. It includes safety notices, warranty information, and regulatory compliance statements.
Key sections include the motherboard specifications (CPU, memory, PCI‑Express, IDE/SATA), step‑by‑step installation instructions, BIOS configuration, and RAID controller setup (RAID 0, 1, 5, 6, JBOD). The document also provides troubleshooting tips and firmware update guidance. This manual is written in Chinese.
SOYO SY-A8N4 specifications
| CPU socket | AM Socket 754 (Athlon) |
|---|---|
| Memory module type | 184‑pin DIMM |
| SATA ports | 4 SATA 1.5 Gb/s interfaces |
| Floppy connector | 1 floppy drive connector |
| Serial ports | 3 serial ports |
All SOYO SY-A8N4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the SY‑A8N4E‑RL motherboard support?
It supports an AM Socket 754 for Athlon processors.
How many SATA ports are available on the board?
The board provides four SATA 1.5 Gb/s ports.
What CPU socket does the SY‑A8N4 support?
The board supports Socket 754 AMD Athlon processors.
How much memory can be installed on the SY‑A8N4?
It can handle up to 2 GB of DDR SDRAM.
