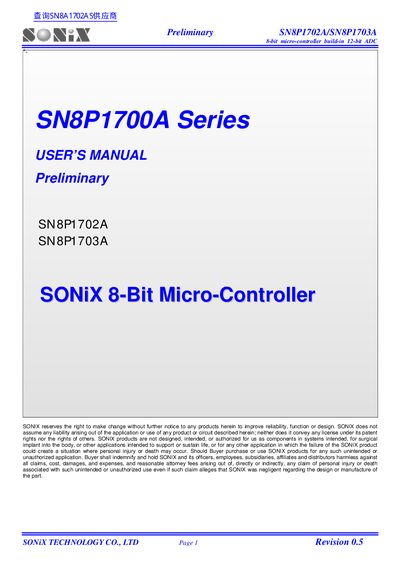

SONiX SN8P1700A Series USER S MANUAL Preliminary
This document is the preliminary User's Manual for the SONiX SN8P1702A and SN8P1703A series of 8-bit micro-controllers. The devices feature a built-in 12-bit Analog-to-Digital Converter (ADC) and are designed for general-purpose applications, with specific disclaimers regarding use in life-support systems.
The manual covers the product overview, features, and selection tables, followed by detailed sections on code options, memory architecture (ROM, RAM), and system registers. It provides comprehensive information on pin assignments, circuit diagrams, oscillators, system modes, timers, and watchdog functionality.
SONiX SN8P1700A specifications
| Micro-controller architecture | 8-bit |
|---|---|
| Analog-to-Digital Converter | 12-bit ADC |
| Document Revision | 0.5 |
All SONiX SN8P1700A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the document status?
This is a preliminary version of the manual.
Which models are covered?
The manual covers the SN8P1702A and SN8P1703A models.
What package types are available for the SN8P1702A and SN8P1703A?
SN8P1702A is offered in PDIP‑18 and SOP‑18 packages, while SN8P1703A is available in PDIP‑20, SOP‑20 and SSOP‑20 packages.
From: SONIX SN8P1700A series SN8P1702A SN8P1703A SONiX 8 Position microcontroller user manual
How many interrupt sources does the SN8P1700A series provide?
The microcontroller provides three interrupt sources: TC0, TC1, and INT0.
