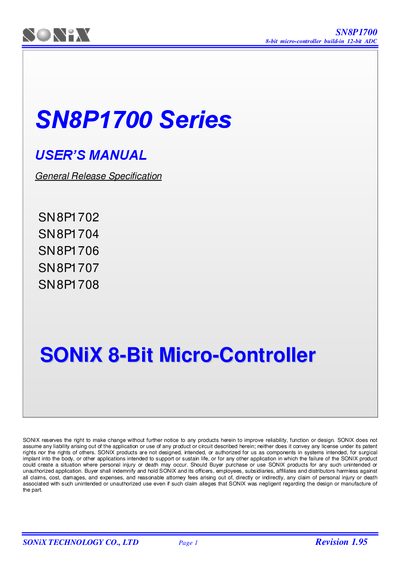

SONiX SN8P1700 User Manual
This manual describes the SN8P1700 series 8‑bit micro‑controller with a built‑in 12‑bit ADC. It includes product overview, features, pin assignments, register descriptions, and detailed operation of timers, interrupts, and serial I/O. Revision history notes updates such as temperature range extension and internal interrupt count changes.
The document also covers hardware details like the P‑DIP 40‑pin package, oscillator options, low‑voltage detector, power‑down modes, PWM functionality, and SIO master/slave operation. Electrical characteristics, memory maps, and checksum calculation are provided for developers and system designers.
SONiX SN8P1700 specifications
| CPU Architecture | 8‑bit micro‑controller |
|---|---|
| ADC Resolution | 12‑bit |
| Operating Temperature | -20°C to +70°C |
| Package Type | P‑DIP 40‑pin |
| Number of Internal Interrupts | Three |
| SIO Mode Control (SCKMD) | 1 = Slave, 0 = Master |
Source: SONiX SN8P1700 User Manual
All SONiX SN8P1700 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating temperature range of the SN8P1700?
The SN8P1700 operates from –20 °C to +70 °C.
How many internal interrupts does the SN8P1704 have?
The SN8P1704 has three internal interrupts.
What package types are available for the SN8P1702A and SN8P1703A?
SN8P1702A is offered in PDIP‑18 and SOP‑18 packages, while SN8P1703A is available in PDIP‑20, SOP‑20 and SSOP‑20 packages.
From: SONIX SN8P1700A series SN8P1702A SN8P1703A SONiX 8 Position microcontroller user manual
How many interrupt sources does the SN8P1700A series provide?
The microcontroller provides three interrupt sources: TC0, TC1, and INT0.
From: SONIX SN8P1700A series SN8P1702A SN8P1703A SONiX 8 Position microcontroller user manual
