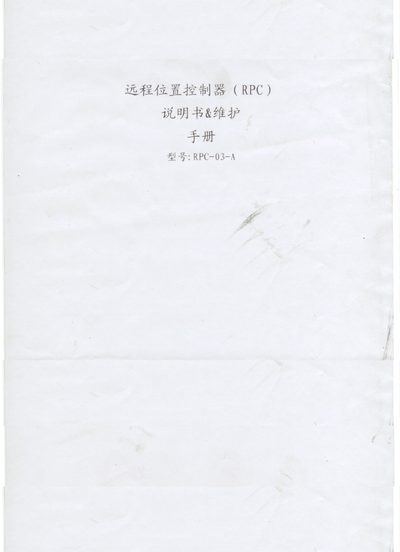

RPC-03-A Remote Position Controller Maintenance Manual
The document describes the pre‑use checks, standard parameters and main functions of the RPC‑03‑A remote position controller. It explains how to select input signals, configure fail‑safe modes, set delay time, dead band, and perform manual zero/span adjustments.
Additional sections cover RPC card settings, reverse actuator configuration, potentiometer and limit‑switch adjustments, maintenance procedures, periodic inspection, and a detailed fault‑diagnosis guide with repair methods. This manual is written in Chinese.
RPC-03-A specifications
| Model | RPC-03-A |
|---|---|
| Input Impedance | 250 Ω |
| Output Signal | 4~20 mA DC |
| Delay Time Adjustment | 0.5~8 seconds (1st gear 0.5 s, 0~15 gear) |
| Dead Band Adjustment | 0.1~4.5 % (1st gear 0.3 %) |
| Fail‑Safe Mode | FAIL CLOSE, FAIL OPEN, FAIL STOP |
| Ambient Temperature Range | -10 °C ~ +60 °C |
Source: RPC-03-A Remote Position Controller Maintenance Manual
All RPC-03-A documents by type
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How do I select the fail‑safe mode for the controller?
Use the DIP switches to choose FAIL CLOSE, FAIL OPEN, or FAIL STOP as described in the ‘Main Functions and Operation’ section.
From: RPC-03-A Remote Position Controller Maintenance Manual
What is the recommended procedure for checking the limit switches?
Pull the manual/auto conversion lever, rotate the handwheel to fully close the valve, loosen the CLOSE limit cam bolt, adjust the cam to match the micro‑switch contacts, then tighten the bolt; repeat for the OPEN cam.
From: I-Tork RPC-03-A Remote Position Controller Service Manual
