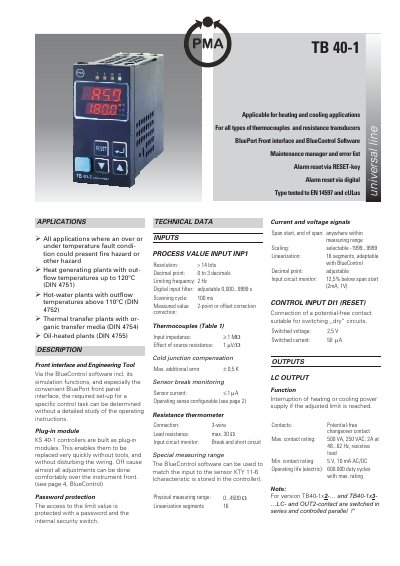

PMA TB 40-1 Temperature Limiter Operating Instructions
This document provides operating instructions for the PMA TB 40-1 temperature limiter. It details various applications where the device is suitable, such as heat generating plants and hot-water systems with specific temperature limits.
The manual describes the front interface features, including the BluePort panel and BlueControl software for setup without detailed study of the full instructions. It covers technical specifications for inputs (thermocouples, resistance thermometers, current/voltage), outputs (relays), power supply options, and environmental conditions.
PMA TB 40-1 specifications
| Input Resolution | > 14 bits |
|---|---|
| Scanning Cycle | 100 ms |
| Output Contact Rating | 500 VA, 250 VAC, 2A |
| Operating Life (Electric) | 600.000 duty cycles |
| Power Consumption | approx. 7 VA |
| Protection Class (Front) | IP 65 (NEMA 4x) |
Source: PMA TB 40-1 Temperature Limiter Operating Instructions
All PMA TB 40-1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the applications for this device?
It is used in heat generating plants with outflow temperatures up to 120°C, hot-water plants above 110°C, and thermal transfer plants.
From: PMA TB 40-1 Temperature Limiter Operating Instructions
How is the device configured?
Configuration can be done via the BluePort front panel interface or using the BlueControl software for specific control tasks.
From: PMA TB 40-1 Temperature Limiter Operating Instructions
What are the applications for the TB 40-1?
It is applicable for heat generating plants, hot-water plants, thermal transfer plants, and oil-heated plants.
How is the TB 40-1 configured?
Configuration is done via the BlueControl software using the BluePort front panel interface.
