KS40-1 controller is an industrial controller for over and under temperature fault conditions, which can be applied to heat generating plants, hot water plants, thermal transfer plants, etc.

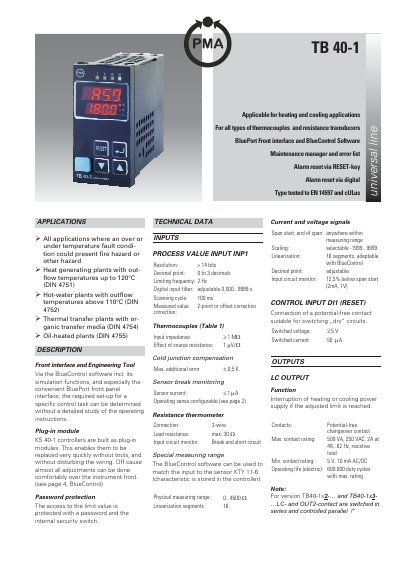

This document serves as the operating manual for the PMA TB 40-1 temperature limiter, a plug-in module designed for heating and cooling applications. It details the device's suitability for various industrial plants, including heat generating and hot-water plants, and highlights features such as password protection and sensor break monitoring.
The manual provides comprehensive technical specifications for inputs (thermocouples, resistance thermometers, current/voltage) and outputs (LC, OUT1, OUT2). It also describes the BluePort front interface and the BlueControl software used for configuration, parameter setting, and operation via a PC.
| Applicable for | Heat generating plants with outflow temperatures up to 120°C |
|---|---|
| Input resolution | > 14 bits |
| Scanning cycle | 100 ms |
| LC Output rating | 500 VA, 250 VAC, 2A |
| OUT1/OUT2 rating | 500 VA, 250 VAC, 2A |
| AC Supply voltage | 90...260 VAC |
| DC Supply voltage | 18...31 VDC |
| Protection class | IP 65 (NEMA 4x) |
| Weight | 0,27 kg |
It is applicable for heat generating plants, hot-water plants, thermal transfer plants, and oil-heated plants.
Configuration is done via the BlueControl software using the BluePort front panel interface.
The operating life is 600,000 duty cycles with maximum rating.
The permissible temperature range for operation is -20...65°C.
