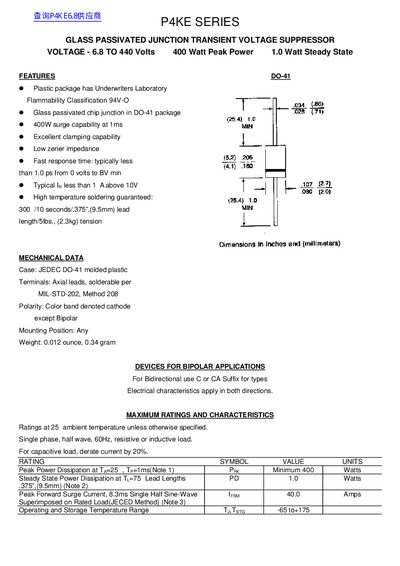

P4KE SERIES GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE - 6.8 TO 440 Volts 400 Watt Peak Power 1.0 Watt Steady State
Datasheet 5 pages · 246 KB · EN
The P4KE series consists of glass‑passivated junction transient voltage suppressors (TVS) packaged in JEDEC DO‑41 molded plastic. They offer fast response times, low Zener impedance, and high surge capability, with ratings up to 400 W peak power and 1 W steady‑state dissipation.
The document provides mechanical data, maximum ratings, characteristic curves, and detailed tables for both unidirectional and bidirectional devices, listing stand‑off voltage, breakdown voltage, peak forward surge current, and leakage current for each part number.
P4KE series specifications
| Voltage Range | 6.8 V to 440 V |
|---|---|
| Package | JEDEC DO‑41 molded plastic, axial leads |
| Reverse Standoff Voltage (P4KE400) | 324 V |
All P4KE series documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What package type are the P4KE devices housed in?
They are supplied in a JEDEC DO‑41 molded‑plastic axial‑lead package.
