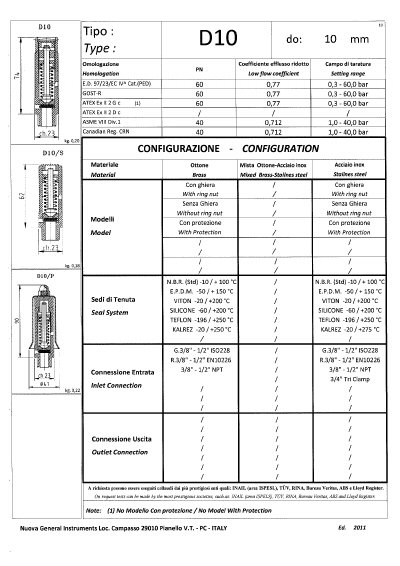

Nuova General D10 Low Flow Coefficient Valve Technical Data Sheet
This document provides technical specifications for the Nuova General D10 valve, a device designed with a low flow coefficient. It lists various homologations including PED, GOST-R, ATEX, ASME, and Canadian regulations, specifying pressure ranges and flow coefficients (Cv) for different configurations.
The datasheet details available material options such as brass, mixed brass-stainless steel, and stainless steel, along with connection types like NPT, ISO228, EN10226, and Tri Clamp. It also outlines compatible seal systems including N.B.R., E.P.D.M., Viton, Silicone, Teflon, and Kalrez with their respective temperature ranges.
Nuova D10 specifications
| Material Options | Brass, Mixed Brass-Stainless steel, Stainless steel |
|---|---|
| Connection Sizes | 3/8" - 1/2" |
| Seal Temperature Range (N.B.R.) | -10 / + 100 °C |
| Seal Temperature Range (VITON) | -20 / +200°C |
Source: Nuova General D10 Low Flow Coefficient Valve Technical Data Sheet
All Nuova D10 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which testing societies can perform on-request tests for the D10 valve?
Tests can be made by prestigious societies such as INAIL, TUV, RINA, Bureau Veritas, ABS and Lloyd Register.
From: Nuova General D10 Low Flow Coefficient Valve Technical Data Sheet
What are the available seal systems for the D10 valve?
Available seals include N.B.R., E.P.D.M., Viton, Silicone, Teflon, and Kalrez.
From: Nuova General D10 Low Flow Coefficient Valve Technical Data Sheet
What are the available seal systems for the D10/C valve?
Available seal systems include N.B.R., EPDM, Viton, Silicone, PTFE, Kalrez, and Metal.
Which materials are available for the D10/C valve?
The valve is available in Brass, Mixed Brass-Stainless steel, and Stainless steel.
