D10/C type pressure reducing valve, can be used for gas and liquid, has anti-leakage and overpressure protection functions.

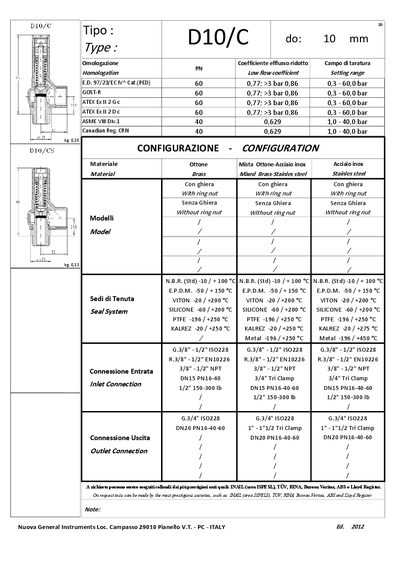

This document provides technical specifications for the Nuova General D10/C valve. It lists various homologations including PED, GOST-R, ATEX, and ASME, along with flow coefficients and pressure ratings for different configurations.
The datasheet details available materials such as brass, mixed brass, and stainless steel, as well as compatible seal systems like N.B.R., EPDM, Viton, and PTFE with their respective temperature ranges. It also specifies inlet and outlet connection options including G, R, NPT, and Tri Clamp standards.
| Pressure Rating (ASME) | 1.0 - 40.0 bar |
|---|---|
| Weight | 0.35 kg |
| Seal System Temperature (N.B.R.) | -10 / + 100 °C |
| Seal System Temperature (PTFE) | -196 / +250 °C |
| Outlet Connection | DN20 PN16-40-60 |
Available seal systems include N.B.R., EPDM, Viton, Silicone, PTFE, Kalrez, and Metal.
The valve is available in Brass, Mixed Brass-Stainless steel, and Stainless steel.
Yes, it is certified for ATEX Ex II 2Gc and Ex II 2Dc.
