Key facts
- Brand
- Nokia
- Model
- 2730 Classic
- Category
- Cell Phones
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-05-02
Start here

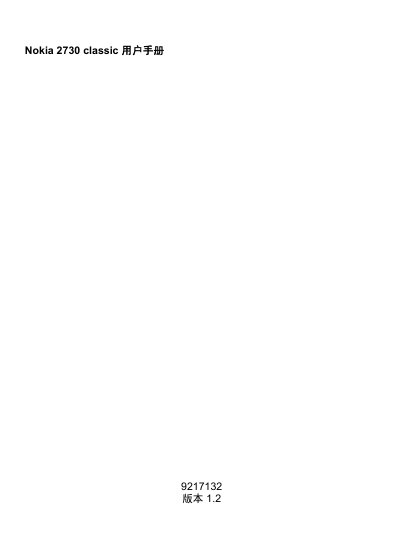

Nokia 2730 Classic User Manual
This manual covers safety information, proper handling of the SIM card and microSD card, battery charging procedures, and usage of accessories such as headsets and speakers. It also explains volume control, standby mode, and provides troubleshooting tips.
Key sections include detailed steps for inserting and removing the SIM card, guidelines for using compatible microSD cards (up to 2 GB), warnings about non‑water‑proof design, and recommendations for safe headset use. This manual is written in Chinese.
Nokia 2730 Classic specifications
| Band | GSM 850/900/1800/1900 + WCDMA 900/2100 (RM‑578) |
|---|---|
| Display | 2" QVGA 320 × 240, up to 256 k colours |
| Camera | 2 megapixel |
| Operating System | Series 40 5 Edition, Feature Pack 1 |
| Bluetooth | Bluetooth 3.0 |
| Audio connector | 3.5 mm AV connector |
| USB interface | Micro USB, USB 2.0 |
| Memory card | MicroSD (hot swap) |
| Battery type | BL‑5C (1020 mAh) battery pack |
| GSM talk time | Up to 4.1 hours |
| GSM standby time | Up to 370.3 hours |
| WCDMA talk time | Up to 3.1 hours |
| WCDMA standby time | Up to 380.7 hours |
All Nokia 2730 Classic documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety warnings must be observed when servicing the Nokia 2730 Classic?
Servicing must be performed by qualified personnel, using ESD protection, and care must be taken in vehicles with electronic engine management or anti‑skid systems because RF energy can affect them; the phone must not be used in explosive atmospheres or near sensitive medical devices.
How should the battery be charged and maintained?
Use only approved BL‑5C batteries and chargers, avoid over‑charging, keep the battery between 15 °C and 25 °C, and discharge it periodically; do not short‑circuit or expose it to extreme temperatures.
What type of memory card does the Nokia 2730 Classic support?
It supports microSD cards up to 2 GB in capacity.
Can I use the phone while it is charging?
Yes, the device can be used while charging and does not require a specific charging time.
Is the Nokia 2730 Classic waterproof?
No, the device does not have waterproof performance and should be kept dry.
