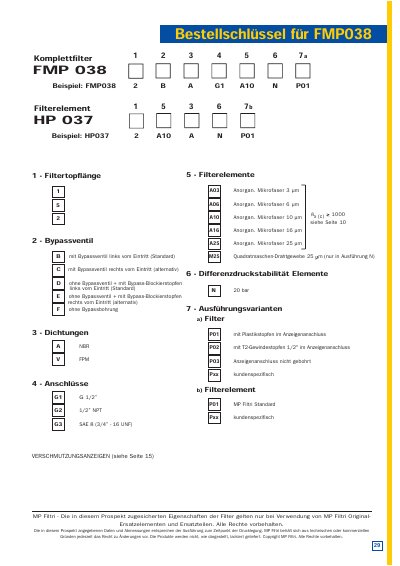

MP Filtri FMP038 Complete Filter Technology Data
This document provides technical specifications for the MP Filtri FMP038 complete filter. It details the composition of the filter assembly, including the filter housing and the specific filter elements available, such as the A03, A06, A10, A16, and A25 micron variants made of inorganic microfiber.
The text outlines various configuration options for the filter, including the presence or absence of a bypass valve and the type of indicator connection (plastic plug, T2 thread, or unboiled). It also lists the available connection types for the filter housing and filter elements, covering G1, G2, and G3 standards. This manual is written in German.
MP FMP 038 specifications
| Filter element type | Anorgan. Mikrofaser |
|---|---|
| Available micron ratings | 3 um, 6 um, 10 um, 16 um, 25 um |
| Standard connection type | Bypassventil links vom Eintritt |
| Housing connection G2 | 1/2" NPT |
| Housing connection G3 | SAE 8 (3/4" - 16 UNF) |
All MP FMP 038 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the standard bypass valve position?
The standard configuration includes a bypass valve on the left side of the inlet.
Are the filter elements made of organic material?
No, the filter elements are made of inorganic microfiber.
What is the recommended maximum flow rate for the FMP 038 filter?
The recommended maximum flow rate is 1.5 bar when the pressure drop of the complete filter equals this value.
What oil kinematic viscosity is required for the FMP 038 filter?
The filter requires an oil kinematic viscosity of 30 mm2/s (cSt).
