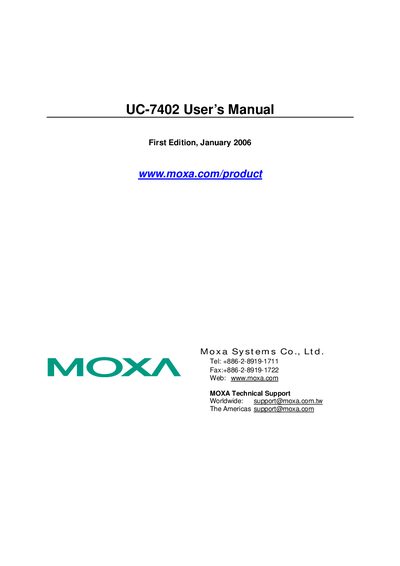

Moxa UC-7402 User Manual
The UC-7402 is a rugged, fan‑less embedded network computer with dual 10/100 Mbps Ethernet ports, a PCMCIA slot for WLAN, and CompactFlash storage. It runs an embedded Linux OS on an Intel XScale IXP‑422 266 MHz CPU, offering real‑time data access, VPN routing, and web‑server capabilities for industrial M2M applications.
This manual covers hardware specifications, wiring and mounting options, network and console configuration, software architecture, and system management tasks such as firmware upgrades, time synchronization, and peripheral integration. Appendices provide factory defaults, backup procedures, and service information.
moxa UC-7402 specifications
| CPU | Intel Xscale IXP-422, 266 MHz |
|---|---|
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Ethernet Ports | Dual 10/100 Mbps (auto‑sensing) |
| Power Input | 12‑48 VDC |
| Dimensions | 197 × 125 × 44 mm |
| Operating Temperature | -10 °C to 60 °C |
| Warranty | 5 years |
Source: Moxa UC-7402 User Manual
All moxa UC-7402 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power voltage does the UC-7402 require?
The UC-7402 operates from a 12‑48 VDC power supply.
From: Moxa UC-7402 User Manual
What are the physical dimensions of the UC-7402?
The unit measures 197 mm × 125 mm × 44 mm.
From: Moxa UC-7402 User Manual
What operating system does the UC‑7402 run?
The UC‑7402 uses an embedded Linux operating system.
From: Moxa UC-7402 User Manual
How many Ethernet ports are provided?
It has two 10/100 Mbps RJ45 Ethernet ports.
From: Moxa UC-7402 User Manual
