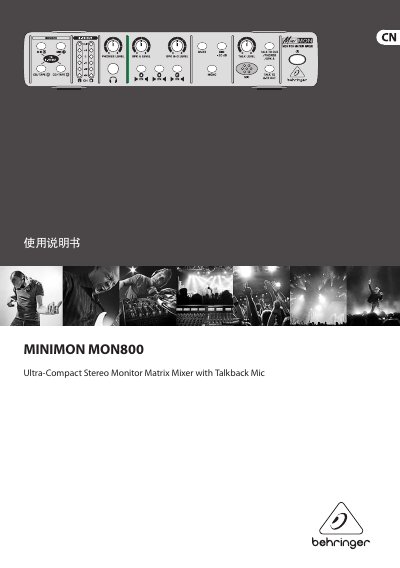

MINIMON MON800 Stereo Monitor Matrix Mixer User Manual
The MINIMON MON800 is an ultra‑compact stereo monitor matrix mixer designed for recording studios. It offers four selectable stereo inputs, precise six‑digit LED level meters, headphone output, three selectable speaker outputs, mute, dim, mono switch, and a built‑in talkback microphone.
This user manual covers safety notices, quick‑start configuration, detailed description of front and rear controls, audio connection methods, application examples, full technical parameters, and an overview of other Mini series products. This manual is written in Chinese.
MINIMON MON800 specifications
| Mix In A+B input impedance | ≈ 10 kΩ |
|---|---|
| Maximum input level | 15 dBu |
| Speakers Out A output impedance (minimum) | 150 Ω |
| Frequency response | 10 Hz – 80 kHz, ±3 dB |
| Power consumption | 100 mA |
| Dimensions (H × W × D) | ≈ 48 × 242.6 × 120 mm |
| Weight | ≈ 0.77 kg |
| Power supply | 9 V~, 750 mA external adapter |
Source: MINIMON MON800 Stereo Monitor Matrix Mixer User Manual
All MINIMON MON800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I connect a computer or other line‑level source to the MON800?
Connect the computer or other line‑level source to the MIX IN A (or B) jack using a suitable 6.3 mm or Cinch cable.
From: MINIMON MON800 Stereo Monitor Matrix Mixer User Manual
What does the DIM switch do?
The DIM switch reduces the monitor line level by –20 dB, useful when you need to talk while monitoring.
From: MINIMON MON800 Stereo Monitor Matrix Mixer User Manual
