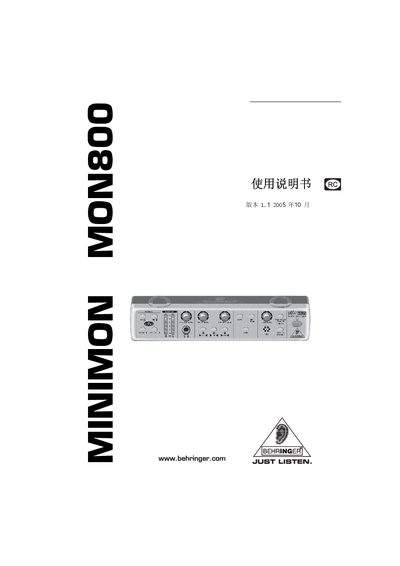

MINIMON MON800 instruction manual, introduces the use of the machine and safety precautions
This manual introduces the MINIMON MON800, a compact monitoring device for audio production. It explains safety precautions, unpacking, and initial setup, then details the front‑panel controls, rear‑panel connectors and optional accessories such as foot‑switches and cue outputs.
The guide also covers typical application examples, wiring diagrams for various studio configurations, and a full set of technical data including input/output levels, impedance, frequency response and power requirements. It ends with a brief overview of the rest of the MINI product series. This manual is written in Chinese.
| Input impedance (MIX IN A+B) | ≈10 kΩ (unbalanced) |
|---|---|
| Maximum input level | 15 dBu |
| Frequency response | 10 Hz – 80 kHz (±3 dB) |
| Total harmonic distortion | 0.005 % |
| Crosstalk | -75 dB @ 1 kHz |
| Signal‑to‑noise ratio | 102 dB (at +4 dBu) |
| Dimensions (H × W × D) | ≈48 mm × 242.6 mm × 120 mm |
| Weight | ≈0.5 kg |
