Start here

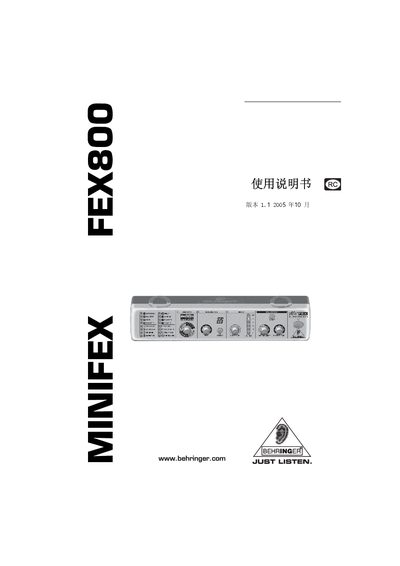

MINIFEX FEX800 User Manual
This manual begins with important safety information, warning users about potential hazards, proper handling, and required qualifications for service work. It also outlines packaging and warranty details.
The remainder of the document describes the front‑panel controls, input and output connections (6.3 mm jacks, balanced/unbalanced), effect parameters such as Reverb, Delay, Flanger, and provides technical data including impedance, output level, sample rate, and bit depth. Application examples and auxiliary/insert routing options are also covered. This manual is written in Chinese.
MINIFEX FEX800 specifications
| Input impedance | ≈30 kΩ (unbalanced, 6.3 mm mono) |
|---|---|
| Power supply | 9 V ~ 750 mA external adapter (regional voltages available) |
| Dimensions (H × W × D) | ≈47.9 mm × 242.6 mm × 120 mm |
| Weight | ≈0.41 kg |
| Digital processor | 24‑bit Delta‑Sigma, 128× oversampling, 48 kHz scan rate |
Source: MINIFEX FEX800 User Manual
All MINIFEX FEX800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many effect presets does the FEX800 provide?
The FEX800 offers 16 different effect presets.
What power supply does the FEX800 require?
It requires a 9 V ~ 750 mA external power adapter, with regional voltage options (120 V, 230 V, etc.).
