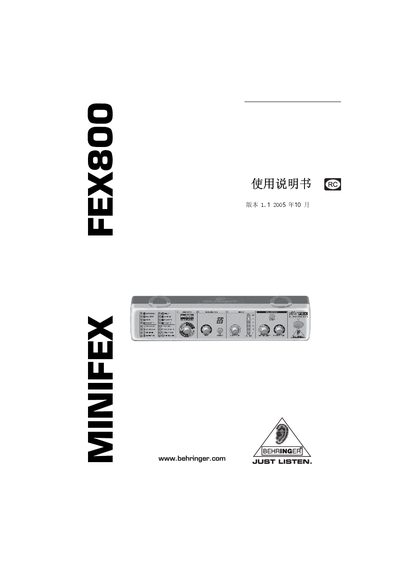

MINIFEX FEX800 user manual, includes safety instructions, detailed safety instructions, introduction, before you start, unpacking inspection, installation, basic operation, effect editing, function introduction and other contents.
This manual introduces the MINIFEX FEX800, a compact 16‑preset multi‑effect processor for studio and stage use. It begins with important safety warnings, proper handling, and warranty information to ensure safe operation.
The guide details the front‑panel controls, rear‑panel connectors, effect categories, wiring options, and technical data such as input/output impedance, power requirements, dimensions, and performance specifications. It also includes application examples for integrating the unit into various audio signal chains. This manual is written in Chinese.
| Input impedance | ≈30 kΩ (unbalanced, 6.3 mm mono) |
|---|---|
| Power supply | 9 V ~ 750 mA external adapter (regional voltages available) |
| Dimensions (H × W × D) | ≈47.9 mm × 242.6 mm × 120 mm |
| Weight | ≈0.41 kg |
| Digital processor | 24‑bit Delta‑Sigma, 128× oversampling, 48 kHz scan rate |
The FEX800 offers 16 different effect presets.
It requires a 9 V ~ 750 mA external power adapter, with regional voltage options (120 V, 230 V, etc.).
