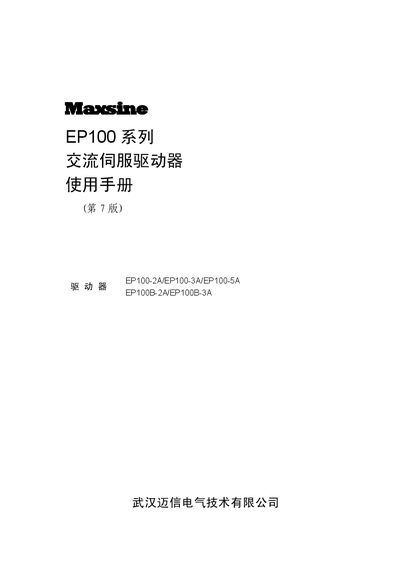

Maxsine EP100 Series AC Servo Drive User Manual
This manual covers product inspection, installation, wiring, interface connections, parameter settings, protection functions, display and keyboard operation, and running procedures for the Maxsine EP100 series AC servo drives. It includes safety precautions, recommended environmental conditions, and detailed wiring guidelines.
The specification section lists electrical ratings, operating temperature ranges, humidity limits, speed response, and other technical data needed for proper integration and maintenance of the servo drive in industrial applications. This manual is written in Chinese.
Maxsine EP100 specifications
| Input voltage | Three‑phase AC 220 V ±15 % (50/60 Hz) |
|---|---|
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -40 °C to 50 °C |
| Humidity range | 40 % to 80 % (no condensation) |
| Speed frequency response | ≥250 Hz |
| Speed ripple | < ±0.03 % (load 0‑100 %) |
| Main power wire gauge | ≥1.5 mm² (AWG14‑16) for R, S, T, PE, U, V, W terminals |
All Maxsine EP100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What wire gauge should be used for the main power terminals?
The main power terminals (R, S, T, PE, U, V, W) require a wire gauge of at least 1.5 mm² (AWG14‑16).
How long can the signal and encoder cables be?
Signal cables should be no longer than 3 m, and encoder cables no longer than 20 m.
What does the SON control signal do?
SON ON enables the driver to operate; SON OFF disables the driver, stopping the motor and leaving it in a free‑run state.
