Key facts
- Brand
- Marantz
- Model
- PM7200
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-26
Start here

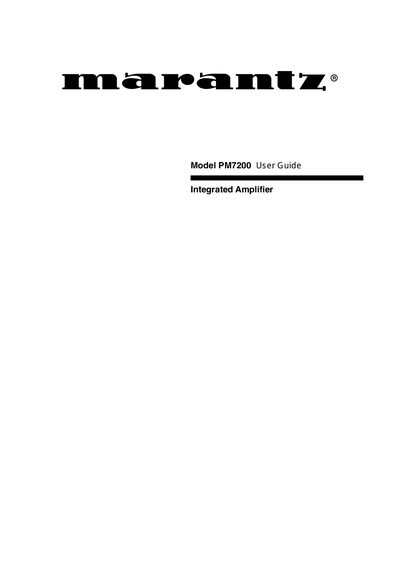

Marantz PM7200 User Manual
This manual begins with safety warnings, warranty information, and ventilation requirements. It advises keeping at least 0.2 m of free space around the unit and 1 m above the top panel to ensure proper cooling.
The guide then details how to connect source devices (tuner, CD player, turntable, tape deck, processor) and speaker systems, explains all front‑panel and rear‑panel controls, indicators, and switches, and describes operation modes such as Class A/AB, standby, and source‑direct.
Marantz PM7200 specifications
| Class A output power | 25 W (8 Ω) |
|---|---|
| Supported speaker impedance (single system) | 8 Ω – 16 Ω |
| Supported speaker impedance (dual system) | ≥ 16 Ω per speaker |
| Supported mains voltages | 110 V, 120 V, 220 V, 240 V |
| Maximum power for connected equipment | 100 W |
Source: Marantz PM7200 User Manual
All Marantz PM7200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What speaker impedance should I use for a single speaker system?
Each speaker should have an impedance between 8 Ω and 16 Ω.
How should I ventilate the PM7200 OSE amplifier?
Keep at least 0.2 m of free space around the unit and ensure nothing is placed within about 1 m above the top panel.
What speaker impedance is required for a single speaker system?
Each speaker should have an impedance between 8 Ω and 16 Ω; lower values may trigger protection circuitry.
