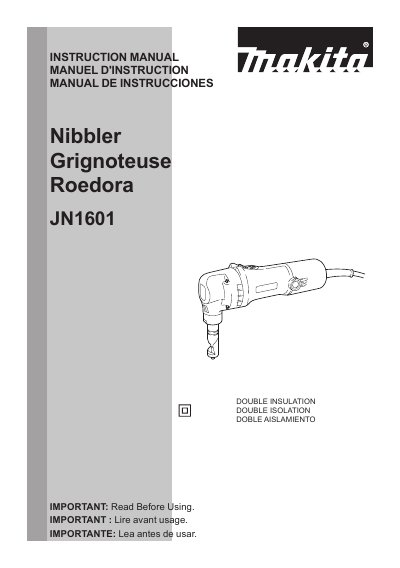

Makita JN1601 Nibbler Instruction Manual
This document serves as the instruction manual for the Makita JN1601 nibbler. It provides essential information including general power tool safety warnings, specific nibbler safety guidelines, and a list of technical specifications such as maximum cutting capacities and stroke rates.
The guide details functional descriptions for changing die positions, permissible cutting thicknesses based on material gauge, and switch operation methods. It further covers assembly instructions for removing or installing the punch and die set, along with operational procedures including pre-lubrication and specific cutting techniques.
Makita JN1601 specifications
| Max. cutting capacity (Mild steel) | 1.6 mm / 16 ga |
|---|---|
| Max. cutting capacity (Stainless) | 1.2 mm / 18 ga |
| Max. cutting capacity (Aluminum) | 2.5 mm / 13 ga |
| Min. cutting radius (Outside edge) | 50 mm (2") |
| Min. cutting radius (Inside edge) | 45 mm (1-25/32") |
| Strokes per minute | 2,200 /min |
| Overall length | 261 mm (10-1/4") |
| Net weight | 1.6 kg (3.6 lbs) |
