Key facts
- Brand
- Makita
- Model
- 4350T
- Category
- Industrial Supply
- Industry
- Industrial
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-05-10
Start here

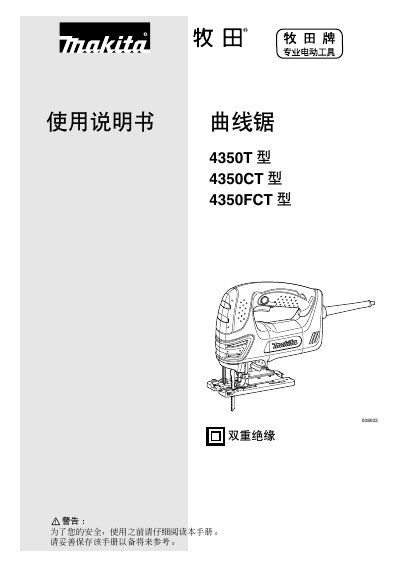

Makita 4350T/4350CT/4350FCT Curve Saw User Manual
This manual explains safe use of the Makita 4350 series curve saw, which can cut wood, plastic, and metal. It includes general safety rules, electrical safety, and personal‑protective recommendations to prevent injury and equipment damage.
The guide also covers tool setup, blade installation, speed adjustment, angle cutting, and accessory attachment, giving step‑by‑step instructions for operating the saw efficiently and safely. This manual is written in Chinese.
Makita 4350T specifications
| Continuous rating Input | 580 V |
|---|---|
| Power rating (CT/FCT models) | 720 W |
| Power rating (T models) | 580 W |
| Power supply cord length | 2.5 m (8.2 ft) |
| Net weight | 2.5 kg (5.5 lb) |
| Overall dimensions | 271 × 73 × 187 mm |
| LED job light (FCT models) | Included |
All Makita 4350T documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What mechanism reduces vibration in the Makita 4350/4351 jig saws?
A lightweight rod and balance‑plate mechanism moves the plate opposite to the rod, dramatically reducing vibration.
Which models have a built‑in LED job light?
The 4350FCT and 4351FCT models include a built‑in LED job light.
How is the saw blade installed and secured?
Insert the blade into the clamp until both side tabs are fully covered, then verify the blade does not move before closing the clamp.
How can the tool be used for angle cutting?
Tilt the base of the tool using the adjustment bolt; the V‑shaped groove indicates the angle, allowing cuts from 0° to 45°.
