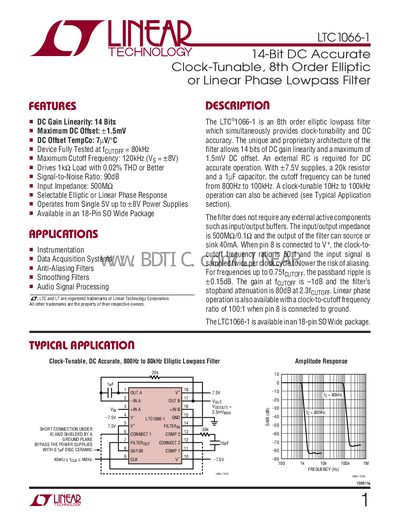

Linear Technology LTC1066-1 Datasheet
The LTC1066-1 provides a high‑performance low‑pass filter solution with both elliptic and linear‑phase options. It offers 14‑bit DC gain linearity, a maximum DC offset of 1.5 mV, and can be clock‑tuned from 800 Hz to 80 kHz. The device operates from a single 5 V supply up to +8 V and is available in an 18‑lead SO wide package.
The datasheet includes detailed electrical characteristics, pin functions, typical performance graphs, and recommended application circuits. It also specifies absolute maximum ratings, package dimensions, and ordering information for both standard and lead‑free versions.
Linear Technology LTC1066-1 specifications
| DC Gain Linearity | 14 Bits |
|---|---|
| Maximum DC Offset | +1.5 mV |
| Input Impedance | 500 MΩ |
| Power Supply Range | +2.375 V to +8 V |
| Output Short‑Circuit Current | +20 mA |
All Linear Technology LTC1066-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What power supplies are recommended for the LTC1066-1?
The filter can operate from a single 5 V supply up to +8 V, with low‑noise linear supplies preferred; switching supplies are not recommended.
How is the clock‑to‑cutoff frequency ratio configured?
Connecting pin 8 to V* sets a 50:1 ratio for elliptic response; connecting pin 8 to ground (or ½ V) sets a 100:1 ratio for linear‑phase response.
What is the maximum cutoff frequency of the LTC1066-1?
The maximum cutoff frequency is 120 kHz when the supply voltage is +8 V.
What supply voltages can be used with the LTC1066-1?
The filter can be powered from a single 5 V supply up to +8 V.
