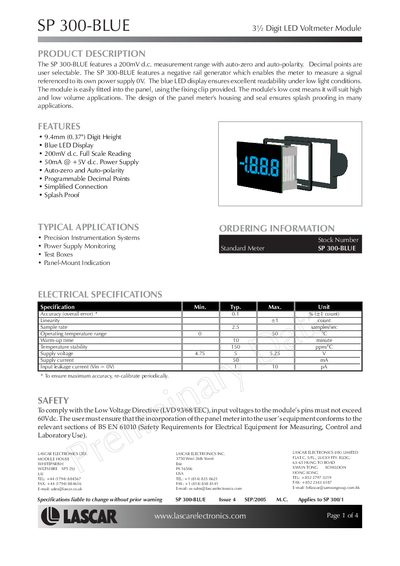

Lascar SP 300-BLUE 3% Digit LED Voltmeter Module User Manual
The SP 300‑BLUE module provides a 200 mV DC full‑scale reading with auto‑zero and auto‑polarity, a blue LED display for low‑light readability, and a negative rail generator that allows measurement referenced to its own power supply. It is panel‑mountable using a fixing clip and is designed for both high‑ and low‑volume applications with splash‑proof housing.
The manual includes electrical specifications, safety guidelines complying with the Low Voltage Directive, dimensions, pin configurations, circuit diagram, scaling options, and application notes for voltage, current, and 4‑20 mA loop measurements.
Lascar SP 300 specifications
| Accuracy | 0.7 % (+1 count) |
|---|---|
| Linearity | x1 count |
| Sample rate | 2.5 samples/sec |
| Operating temperature range | 0‑50 °C |
| Warm‑up time | 10 minute |
| Temperature stability | 150 ppm/°C |
| Supply voltage | 4.75‑5.25 V |
| Supply current | 50 mA |
| Input leakage current | 1‑10 pA (Vin = V+) |
Source: Lascar SP 300 3½ Digit LED Voltmeter Module Datasheet
All Lascar SP 300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the full‑scale measurement range of the SP 300?
The SP 300 provides a 200 mV d.c. full‑scale reading.
Is the SP 300 module splash proof?
Yes, the module is designed to be splash proof.
What is the full‑scale measurement range of the SP 300‑BLUE?
The module has a 200 mV DC full‑scale reading.
From: Lascar SP 300-BLUE 3% Digit LED Voltmeter Module User Manual
What supply voltage does the module require?
It operates from a supply voltage between 4.75 V and 5.25 V.
From: Lascar SP 300-BLUE 3% Digit LED Voltmeter Module User Manual
