Start here

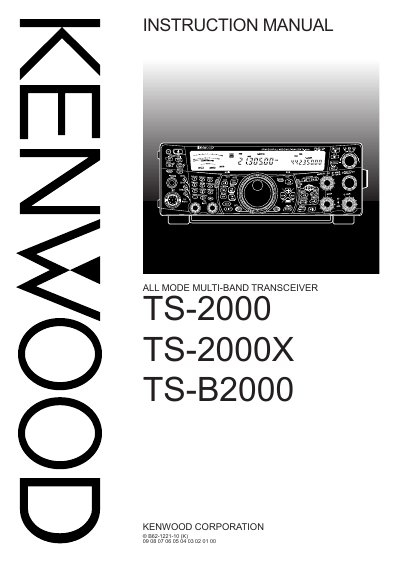

Kenwood TS-2000/TS-2000X/TS-B2000 Instruction Manual
This manual covers the Kenwood TS-2000, TS-2000X and TS‑B2000 all‑mode multi‑band transceivers. It describes the dual DSP architecture, built‑in antenna tuner, sub‑receiver for VHF/UHF, and the integrated 9600/1200 bps TNC, along with detailed menu programming and operating procedures.
Safety and installation sections explain proper grounding, lightning protection, power‑supply requirements, and antenna connection guidelines. The document also includes troubleshooting, maintenance, and optional accessory information to help users keep the equipment running reliably.
Kenwood TS-2000 specifications
| Frequency range | HF to 1.2 GHz |
|---|---|
| DSP units | Dual high‑speed Digital Signal Processing units |
| DSP filter | Adjustable filter frequencies |
| AGC | High speed Digital Automatic Gain Control |
| Sub‑receiver bands | 144 MHz and 430 MHz (FM/AM only) |
| Antenna tuner | Built‑in for HF/50 MHz band |
| Built‑in TNC | 9600/1200 bps packet interface |
Source: Kenwood TS-2000/TS-2000X/TS-B2000 Instruction Manual
All Kenwood TS-2000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the antenna be connected to avoid damage?
Connect the primary HF/50 MHz antenna to ANT 1, ensure the SWR is 1.5:1 or less, and never transmit without an antenna attached.
What grounding precautions are recommended?
All fixed stations should have a lightning arrester and a proper ground; do not use gas pipes or plastic water pipes as a ground.
What is the maximum transmit power of the TS‑480HX model?
The TS‑480HX can deliver up to 200 W of HF output (100 W at 50 MHz).
How many power‑supply connectors does the TS‑480 series have?
It has two separate DC power‑supply connectors, labeled DC1 and DC2.
