Start here

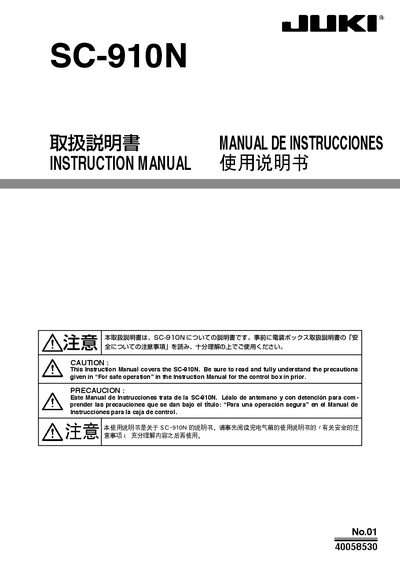

Juki SC-910N Sewing Machine Instruction Manual
This manual covers all safety precautions for the SC-910N, including the use of safety guards, protective covers, and proper handling of the machine to prevent injury. It explains how to transport, install, and connect the machine, with detailed instructions for electrical wiring, grounding, and power‑off procedures.
Operational guidance includes step‑by‑step instructions for stitching, thread handling, and adjustments, as well as routine maintenance tasks such as oiling, cleaning, and part replacement. An error‑code list helps diagnose common problems, and the manual specifies the required operating environment and recommended oil type. This manual is written in Japanese.
JUKI SC-910N specifications
| Single‑phase voltage (100‑120V) | 100–120V |
|---|---|
| Three‑phase voltage (200‑240V) | 200–240V |
| Single‑phase voltage (200‑240V) | 200–240V |
| Frequency | 50Hz/60Hz |
| Power rating | 350VA |
| Maximum humidity | < 90 % |
All JUKI SC-910N documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the belt tension be adjusted?
Turn the adjustment bolt until the belt gap is about 15 mm (≈9.8 N) when pressed at the centre.
How can I change the input voltage setting of the box?
Insert the appropriate FLT board voltage‑change plug (100 V or 200 V) and follow the wiring diagram to select the desired voltage.
What safety equipment must be used when operating the SC-910N?
The machine must be equipped with the safety guard, safety cover, and safety protection device before sewing.
What oil should be used for automatic lubrication?
Use Juki genuine oil for the automatic lubrication system.
