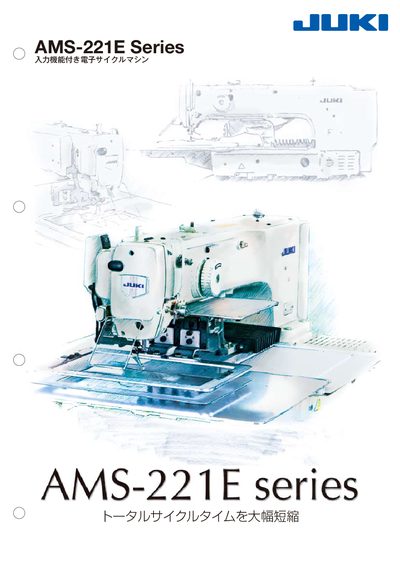

JUKI AMS-221E Series User Manual
The AMS-221E series is an electronic cycle sewing machine that greatly shortens total cycle time with high‑speed stitching up to 2,700 rpm and instant acceleration/deceleration. It supports a variety of sewing applications such as decorative stitching, reinforcement, and labeling on materials ranging from denim to leather.
The machine includes the IP‑410 touch‑panel with multilingual display, memory for up to 200 internal patterns (or 999 with a CF card), and optional accessories like air‑reverse clamps, needle coolers, and various cassette clamps. Power options include single‑phase 100 V or three‑phase 200 V 700 VA AC servo motors. This manual is written in Japanese.
JUKI AMS-221E specifications
| 最高縫速度 | 2,700 rpm |
|---|---|
| 可縫サイズ (2516) | 250 mm × 160 mm |
| 可縫サイズ (3020) | 300 mm × 200 mm |
| 針棒ストローク | 41.2 mm |
| 外押え上昇量 | 30 mm |
| 中押えストローク | 標準4 mm (0‑10 mm) |
| 内部メモリ容量 | 最大200パターン (最大20,000針/パターン) |
| 外部メディア容量 | 最大999パターン (最大50,000針/パターン) |
| 電源仕様 | 単相100 V・三相200 V 700 VA |
| 質量 (完成品) | 197 kg (2516), 207 kg (3020) |
Source: JUKI AMS-221E Series User Manual
All JUKI AMS-221E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum sewing speed of the AMS-221E?
The machine can stitch at up to 2,700 rpm.
