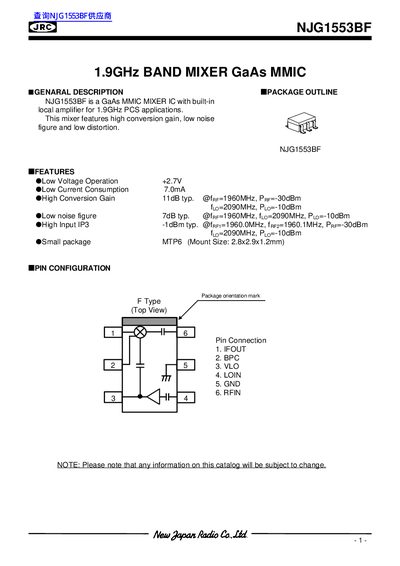

JRC NJG1553BF 1.9GHz Band Mixer GaAs MMIC Datasheet
Datasheet 9 pages · 413 KB · EN
The NJG1553BF is a Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) mixer featuring a built-in local amplifier. It is specifically designed for 1.9GHz PCS applications, offering high conversion gain, low noise figure, and low distortion. The device operates at a low voltage of +2.7V with a typical current consumption of 7.0mA.
Read onlineJRC NJG1553BF specifications
| Supply Voltage | +2.7V |
|---|---|
| Current Consumption | 7.0mA |
| Conversion Gain | 11dB typ. |
| Noise Figure | 7dB typ. |
| Input IP3 | -1dBm typ. |
| Operating Temperature | -30~+85 °C |
| Package Type | MTP6 |
All JRC NJG1553BF documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range?
The typical operating RF frequency range is from 1930MHz to 1990MHz.
What is the recommended supply voltage?
The recommended supply voltage for both the mixer and local amplifier is 2.7V.
What supply voltage is recommended for the NJG1553BF mixer?
The recommended supply voltage range is 2.5 V minimum, 2.7 V typical, and up to 5.8 V maximum.
What package does the NJG1553BF use?
It uses an MTP6 surface‑mount package measuring 2.8 × 2.9 × 1.2 mm.
