Start here

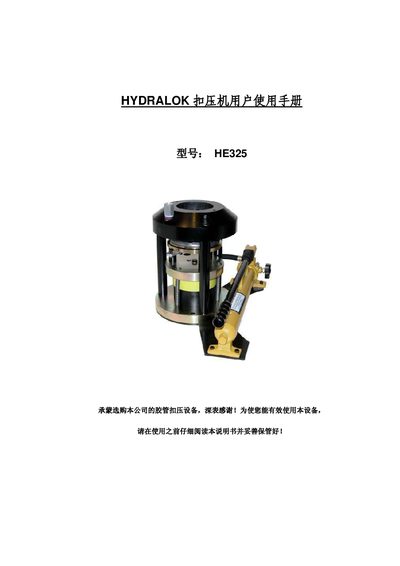

Hydralok HE325 Crimping Machine User Manual
The Hydralok HE325 is a hand‑operated crimping machine used to swage hose assemblies. The manual emphasizes safe operation, requiring the machine to be placed on a stable platform, wearing protective gear, and never operating it before reading the instructions.
Key sections include warranty conditions, safety regulations, technical specifications, handling and transport guidelines, preliminary checks, routine maintenance, detailed operating instructions, calibration procedures, spare‑part lists, and information on optional air‑hydraulic or electrical power packs. This manual is written in Chinese.
Hydralok HE325 specifications
| Maximum pressure (optional air/hydraulic) | 7 bar (100 psi) |
|---|---|
| Packed dimensions (without optional power pack) | 520 × 730 × 800 mm |
| Controls | Twin‑speed hand pump |
| Noise level | ≤ 70 dB |
All Hydralok HE325 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How often should the machine be lubricated?
Lubrication should be performed at least once per day, especially before large‑batch crimping operations.
What is the warranty period for the HE325 machine?
The machine is warranted for 12 months from the date of delivery, provided the sales invoice is presented.
What voltage options are available for the optional electrical power pack?
The optional electrical power pack can be supplied with 220 V single‑phase 50 Hz or 12 V DC.
