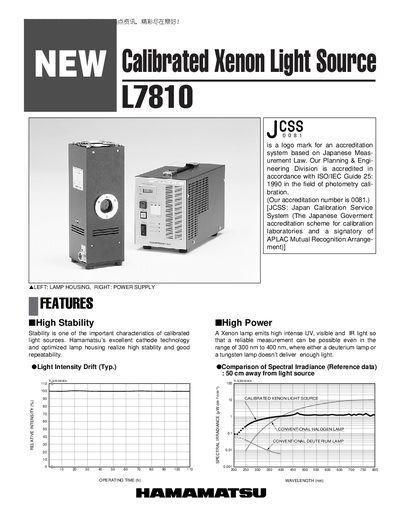

Hamamatsu L7810 Xenon Light Source Manual
The L7810 calibrated xenon light source is designed for high‑stability photometric measurements, covering a wide spectral range from UV to IR. It offers a reliable output for applications requiring precise light intensity, such as calibration labs and scientific testing.
Key features include a xenon lamp with high intensity, air‑cooled housing, and a calibrated spectral range of 250 nm to 800 nm. The manual lists electrical requirements, dimensions, weight, and recommended maintenance intervals to ensure consistent performance.
Hamamatsu L7810 specifications
| Lamp | Xenon Lamp |
|---|---|
| Input Wattage | 150 W |
| Power Consumption | 500 VA |
| Spectral Distribution | 185 nm to 2000 nm |
| Calibrated Range | 250 nm to 800 nm |
| Stability Fluctuation | 1.0 % Max |
| Drift | +0.5 %/h |
| Lamp Housing Dimensions | 100 mm × 280 mm × 100 mm |
| Lamp Housing Weight | Approx. 3.5 kg |
| Recommended Calibration Period | 100 hours or 1 year |
| Guaranteed Life | 500 hours |
All Hamamatsu L7810 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the calibrated wavelength range of the L7810?
The L7810 is calibrated for the range of 250 nm to 800 nm.
How often should the L7810 be recalibrated?
Recalibration is recommended every 100 hours of use or once a year, whichever occurs first.
What is the calibrated wavelength range of the L7810?
The L7810 is calibrated for wavelengths from 250 nm to 800 nm.
What is the recommended calibration period for the L7810?
The recommended calibration period is 100 hours or 1 year, whichever comes first.
