Key facts
- Brand
- GA-7VA
- Model
- GA-7VA
- Category
- Other Computer Accessories
- Documents
- 2
- Languages
- EN
- Last added
- 2012-04-09
Start here
Gigabyte GA-7VA AMD Socket A Motherboard User Manual
This manual covers the complete hardware installation process for the GA-7VA motherboard, including CPU, memory, expansion cards, ribbon cables, and power connections, together with safety precautions for handling sensitive components. It also explains the layout, block diagram, and key features of the board.
Later sections describe BIOS configuration, power‑management options, over‑clocking controls, and technical reference data such as chipset details, audio codec, and USB support. Appendices provide additional resources and contact information for Gigabyte support worldwide.
GA-7VA specifications
| Chipset | VIA VT8235 |
|---|---|
| Audio Codec | Realtek ALC650 |
| USB Interface | USB 2.0 |
| Supported CPUs | AMD Athlon / Athlon XP / Duron Socket A |
Source: Gigabyte GA-7VA AMD Socket A Motherboard User Manual
All GA-7VA documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals

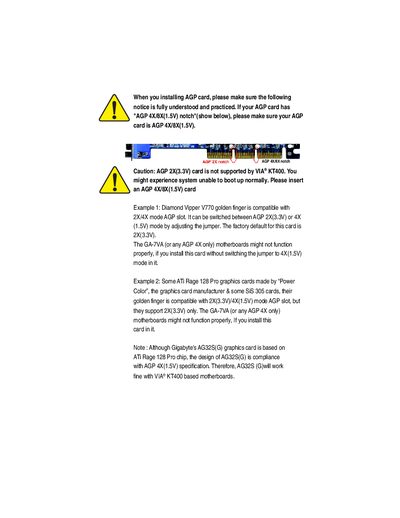

What type of AGP cards are supported by the GA-7VA motherboard?
Only AGP 4X/8X (1.5 V) cards are supported; AGP 2X (3.3 V) cards are not supported and may prevent the system from booting.
What safety precautions should be taken when handling the motherboard?
Unplug the computer, use a grounded wrist strap, handle components by the edges, avoid touching IC pins, and work on an antistatic surface.
What chipset does the GA-7VA motherboard use?
The GA-7VA motherboard is based on the VIA KT400 chipset.
Which CPUs are supported by the GA-7VA motherboard?
It supports AMD Athlon, Athlon XP, and Duron processors for Socket A.
