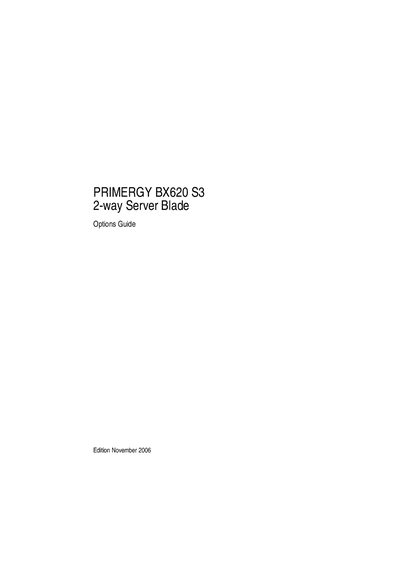

Introduce the option information of PRIMERGY BX620 S3 server blade machine
This Options Guide explains how to extend and upgrade the PRIMERGY BX620 S3 2‑way server blade. It covers processor upgrades, memory expansion, optional I/O modules and storage module variants, and provides safety and preparation instructions for qualified personnel.
The guide also lists related documentation such as the Operating Manual, BIOS Setup manual, and Service Supplement, and gives contact information for obtaining additional ServerBooks CDs or support.
| Processor architecture | Intel‑based |
|---|---|
| Processor type | dual‑core processors |
| Memory type | Fully Buffered DIMM (FBD) 533‑MHz |
| Optional FC I/O module | 2‑Gbit/s |
| Optional Ethernet I/O module | 1‑Gbit/s |
| SATA storage module variants | 1 variant |
| SAS storage module variants | 4 variants (SAS, SAS/RAID, SAS/PCI‑X, SAS/PCIe) |
| Supported hard disks | 2.5‑inch SAS or SATA |
Only processors of the same type and clock frequency as the existing one may be installed as a second processor.
No, storage modules cannot be replaced while the system is running; the blade must be switched off.
The blade supports Fully Buffered DIMM (FBD) 533‑MHz memory modules, installed in pairs with matching capacities.
The blade can be equipped with a 2‑Gbit/s FC I/O module or an additional 1‑Gbit/s Ethernet I/O module.
