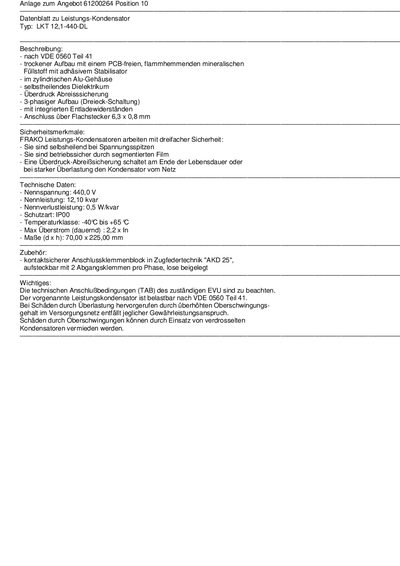

FRAKO LKT 12,1-440-DL Power Capacitor Datasheet
This document is a technical datasheet for the FRAKO LKT 12,1-440-DL power capacitor. It describes the device as a dry-type capacitor with a PCB-free, flame-retardant mineral filling and a self-healing dielectric, housed in a cylindrical aluminum casing.
The datasheet lists key technical specifications including a rated voltage of 440.0 V, a rated power of 12.10 kvar, and dimensions of 70.00 x 225.00 mm. It also outlines safety features such as segmented film and an overpressure release mechanism, along with information on accessories and warranty conditions. This manual is written in German.
FRAKO 1-440-DL specifications
| Rated Voltage | 440.0 V |
|---|---|
| Rated Power | 12,10 kvar |
| Rated Loss Power | 0,5 W/kvar |
| Protection Class | IP00 |
| Temperature Class | -40T bis +65 C |
| Dimensions (d x h) | 70,00 x 225,00 mm |
All FRAKO 1-440-DL documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated voltage of the FRAKO LKT 12,1-440-DL power capacitor?
The rated voltage is 440.0 V.
What is the rated power of the FRAKO LKT 12,1-440-DL power capacitor?
The rated power is 12,10 kvar.
What safety features are included in the FRAKO LKT 12,1-440-DL?
The capacitor works with triple safety: it is self-healing at voltage spikes, operationally safe due to segmented film, and includes an overpressure release safety that disconnects the capacitor from the grid at the end of its life or under heavy overload.
What type of construction does this capacitor use?
It uses a dry construction with a PCB-free, flame-retardant mineral insulating filler with an adhesive stabilizer.
