This document is about the datasheet of LKT 12,1-440-DL power capacitor. The capacitor has the following characteristics:

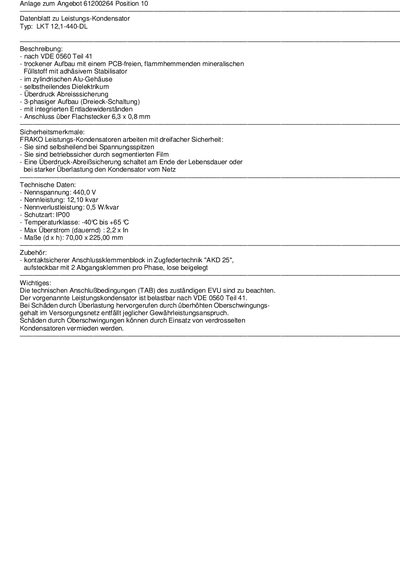

This document is a technical datasheet for the FRAKO LKT 12,1-440-DL power capacitor. It describes a dry construction with a PCB-free, flame-retardant mineral insulating filler and an adhesive stabilizer, housed in a cylindrical aluminum casing. The unit features a self-healing dielectric and integrated discharge resistors, designed for a three-phase delta connection. This manual is written in German.
| Rated Voltage | 440.0 V |
|---|---|
| Rated Power | 12.10 kvar |
| Rated Loss Power | 0.5 W/kvar |
| Protection Class | IP00 |
| Temperature Class | -40T to +65 C |
| Max Overcurrent (continuous) | 2.2 x In |
| Dimensions (d x h) | 70.00 x 225.00 mm |
The capacitor works with triple safety: it is self-healing at voltage spikes, operationally safe due to segmented film, and includes an overpressure release safety that disconnects the capacitor from the grid at the end of its life or under heavy overload.
It uses a dry construction with a PCB-free, flame-retardant mineral insulating filler with an adhesive stabilizer.
