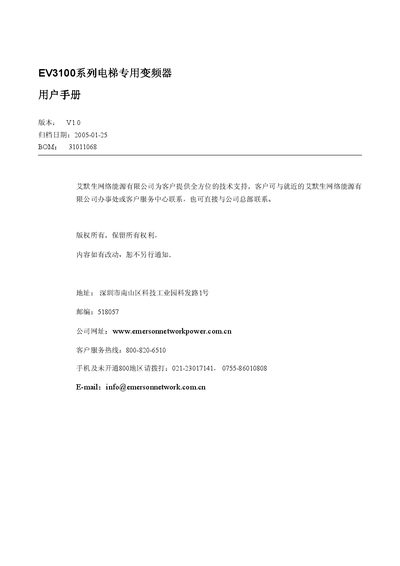

Emerson EV3100 Series Elevator Frequency Converter User Manual
This manual provides comprehensive guidance for the EV3100 series elevator dedicated frequency converter, including safety precautions, installation requirements, and wiring instructions. It details the functional features such as vector control, self‑learning, and various elevator‑specific operating modes.
The document also covers parameter settings, fault diagnosis, routine maintenance, and optional accessories. Technical specifications, performance curves, and EMC guidelines are included to assist engineers and service personnel in proper system integration and troubleshooting. This manual is written in Chinese.
EV3100系列电梯专用变频器 EV3100 specifications
| Model | EV3100-4T0075E |
|---|---|
| Power Rating | 75 kW |
| Input Voltage | 3‑phase AC 380 V, 18 A, 50/60 Hz |
| Output Rating | 11 kVA, 17 A, 0‑99.99 Hz, 380 V |
| Altitude Derating | Derate above 1000 m altitude |
Source: Emerson EV3100 Elevator Frequency Converter User Manual
All EV3100系列电梯专用变频器 EV3100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What does fault code F9.12 indicate?
F9.12 corresponds to “Reserve – Last Fault Terminal Group 1”.
From: Emerson EV3100 Series Elevator Frequency Converter User Manual
What is the warranty period for the EV3100 converter?
The warranty period is eighteen months from the date of manufacture.
From: Emerson EV3100 Series Elevator Frequency Converter User Manual
What is the warranty period for the EV3100 converter?
The warranty period is eighteen months from the date of manufacture.
From: Emerson EV3100 Elevator Frequency Converter User Manual
What safety steps must be taken before wiring the converter?
Ensure the power supply is completely disconnected, ground the terminal securely, and avoid mixing input and output terminals to prevent electric shock or fire hazards.
From: Emerson EV3100 Elevator Frequency Converter User Manual
