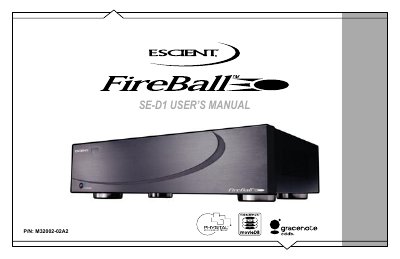

Escient FireBall SE-D1 User Manual
This manual provides step‑by‑step instructions for installing and using the Escient FireBall SE‑D1 media management system. It covers hardware connections, remote control functions, network configuration, and software features such as DVD playback, music library browsing, and internet radio.
Additional sections detail system preferences, password protection, firmware updates, and warranty information, plus a full specifications table for video, audio, and physical dimensions. Troubleshooting tips for network and recording issues are also included.
Escient SE-D1 specifications
| Video DAC Resolution | 10‑bit |
|---|---|
| Composite Frequency Response | -2 dB @ 5 MHz |
| S‑Video Frequency Response | -2 dB @ 5 MHz |
| Signal‑to‑Noise Ratio | 50 dB |
| Audio Frequency Response | 2 – 20 kHz, ±1 dB |
| Audio THD+N (playback) | < -80 dB FS A (< 0.01 %) |
| Dynamic Range | > 96 dB FS A @ 1 kHz |
| Power Requirements | AC 90‑132 V, 50‑60 Hz |
| Power Consumption | < 60 W |
| Physical Width | ~ 17 3/8 in |
| Physical Height | ~ 4 5/8 in (with feet) |
| Physical Depth | ~ 11 7/8 in (installed 14 3/8 in) |
All Escient SE-D1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of blank CD is required for recording audio CDs?
Only royalty‑paid blank CDs marked as “Audio” or “Music” may be used; blanks marked “Data” cannot be used for Red Book audio CDs.
How long is the standard warranty for an Escient FireBall system?
Escient provides a one‑year limited warranty covering parts, labor, and telephone support.
Where is the serial number located and how should I record it?
The serial number is located at the rear of the unit; record it in the space provided in the manual for future support calls.
What are the power requirements and consumption of the FireBall SE‑D1?
It requires AC 90‑132 V, 50‑60 Hz power and consumes less than 60 watts during operation.
